TYN-S7103GM2NR-2F-L2-00
MPN: S7103GM2NR-2F-L2

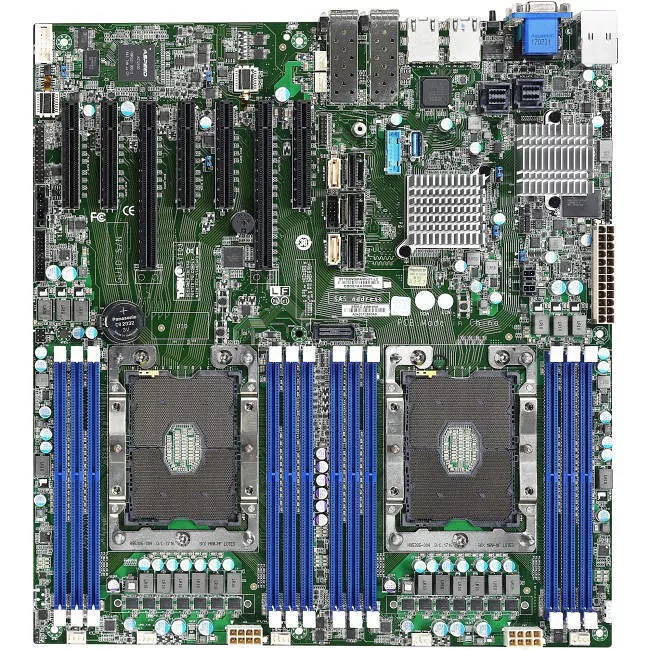

TYAN S7103GM2NR-2F-L2 Tempest CX S7103 Server Motherboard - Intel C622 Chipset - 2X Socket LGA3647

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S7103GM2NR-2F-L2
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Tempest CX
Product Model
S7103
Product Name
Tempest CX S7103 Server Motherboard
Packaged Quantity
1
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
C622
Total Processor Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Silver
    • Memory
    Number of Memory Slots
    12
    Memory Form Factor
  • DIMM
  • LRDIMM
  • RDIMM
    • Maximum Memory Supported
    1.50 TB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
  • 2666 MHz
  • 2400 MHz
  • 2133 MHz
    • I/O Controller
    Controller Type
    Serial ATA/600
    Intel RSTe
    Yes
    RAID Supported
    Yes
    RAID Levels
  • 10
  • 5
  • 1
  • 0
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Model
    AST2500
    Network & Communication
    10Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    7
    Total Number of PCI Express Slots
    7
    Number of PCI Express x8 Slots
    5
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 3.0 Ports
    2
    VGA
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    2
    Number of Mini-SAS Interfaces
    3
    Total Number of Onboard USB Ports
    3
    Number of Onboard USB 3.0 Ports
    3
    Physical Characteristics
    Form Factor
    Extended ATX
    Width
    13"
    Depth
    12"
    Miscellaneous
    Package Contents
    • Tempest CX S7103 Server Motherboard
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Country of Origin
    China
    Environmentally Friendly
    Yes
    Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Warranty
    Limited Warranty
    3 Year
