TYN-S32272NR-C958-00
MPN: S32272NR-C958

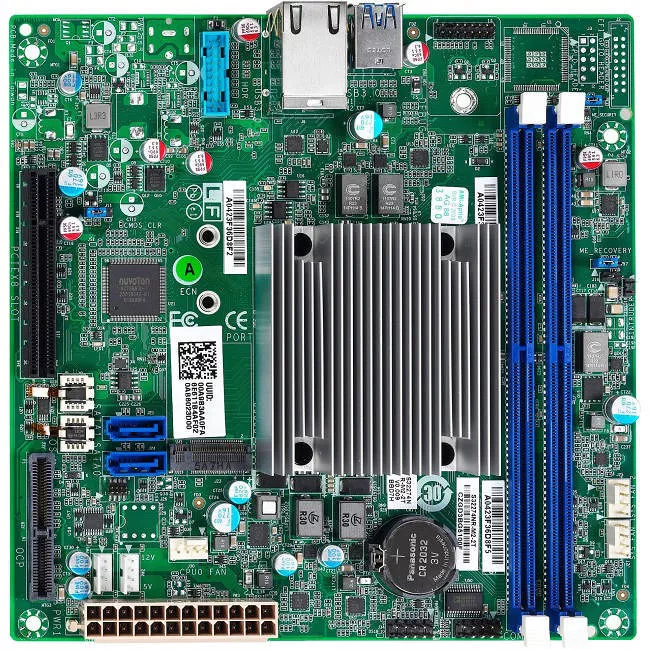

MiTAC S32272NR-C958 S3227 Server Motherboard - Atom C3958 CPU

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S32272NR-C958
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
S3227
Product Name
S3227 Desktop Motherboard
Packaged Quantity
1
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Integrated Processor
Integrated Processor Manufacturer
Intel
Integrated Processor Type
Atom
Integrated Processor Model
C3958
Integrated Processor Speed
2 GHz
Integrated Processor Core
Hexadeca-core (16 Core)
Memory
Number of Memory Slots
2
Memory Form Factor
  • DIMM
  • UDIMM
  • RDIMM
    • Maximum Memory Supported
    64 GB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
    2400 MHz
    I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    No
    Video
    Onboard Video
    No
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    2
    Total Number of PCI Express Slots
    1
    Number of PCI Express x8 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 3.0 Ports
    2
    Onboard Interfaces
    Number of SATA Interfaces
    2
    Number of M.2 Interfaces
    1
    Total Number of Onboard USB Ports
    2
    Number of Onboard USB 3.0 Ports
    2
    Physical Characteristics
    Form Factor
    Mini ITX
    Width
    6.7"
    Depth
    6.7"
    Miscellaneous
    Package Contents
    • S3227 Desktop Motherboard
    • 1 x Quick Installation Guide
    • 1 x TYAN Installation CD
    Country of Origin
    Taiwan
    Environmentally Friendly
    Yes
    Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
    • Warranty
    Limited Warranty
    3 Year

    Specifications
