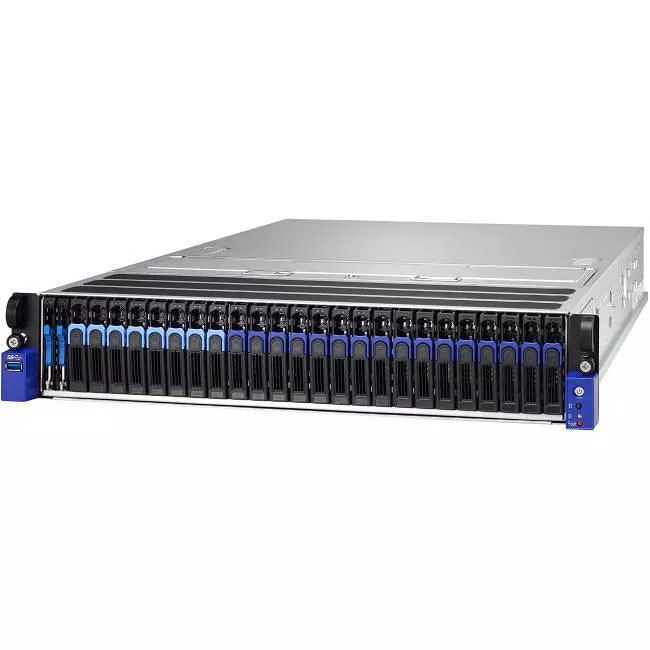

TYN-B8242T76AV18E8HR-2V-00
MPN: B8242T76AV18E8HR-2V

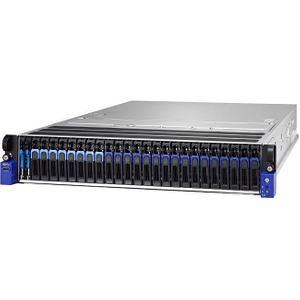

TYAN B8242T76AV18E8HR-2V TN76A-B8242 2U Rack Barebone - Aspeed AST2500 Chipset - 2X AMD Socket SP3


Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B8242T76AV18E8HR-2V
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Transport HX
Product Model
TN76A-B8242
Product Name
Transport SX TN76AB8242 (B8242T76AV18E8HR-2V)
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket SP3
Processor Supported
EPYC
64-bit Processing
Yes
Chipset
Chipset Manufacturer
AMD
Memory
Maximum Memory Supported
4 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Total Number of Memory Slots
32.0
Controllers
Controller Type
Serial ATA/600
RAID Supported
No
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
  • 25 Gigabit Ethernet
  • Gigabit Ethernet
  • I/O Expansions
    Number of Total Expansion Bays
    26
    Total Number of Expansion Slots
    8.0
    Number of PCI Express x8 Slots
    6
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    3
    Number of USB 3.0 Ports
    3
    Operating System
    Operating System Supported
  • Windows Server 2016 Standard x64
  • Red Hat Enterprise linux 7.4 x64
  • SUSE Linux Enterprise Server 12
  • Ubuntu 17.10.1 x64
  • Red Hat Enterprise linux 7.5 x64
  • Power Description
    Input Voltage
    230 V AC
    Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    2400 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.5"
    Width
    17.2"
    Depth
    30.1"
    Weight (Approximate)
    41.89 lb
    Miscellaneous
    Package Contents
    • Transport SX TN76AB8242 (B8242T76AV18E8HR-2V)
    • 1 x Quick Installation Guide
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year
