MPN: B8037T73X4-200PV4HR

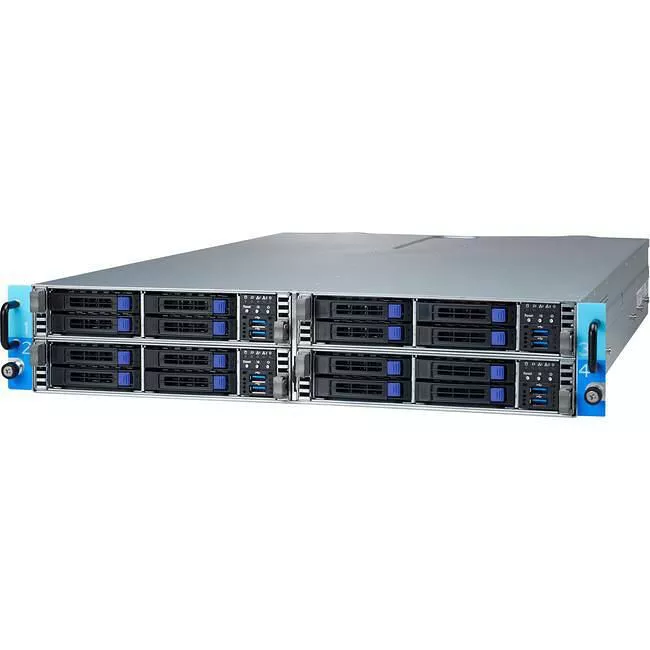

TYAN B8037T73X4-200PV4HR Transport CX TN73-B8037-X4S Barebone - 2U Rack - 4x AMD EPYC (Rome) Sleds - SP3
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B8037T73X4-200PV4HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Transport CX
Product Model
TN73-B8037-X4S
Product Name
Transport CX TN73-B8037-X4S 2U4N 1S 8-DIMM NVMe/SATA HCI Server
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket SP3
Processor Supported
EPYC
64-bit Processing
Yes
Memory
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-3200/PC4-25600
Total Number of Memory Slots
8.0
Controllers
Controller Type
RAID Supported
No
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
4
Total Number of Expansion Slots
2.0
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
3
Number of USB 3.1 Gen 1 Ports
2
USB Type-C (Rear)
Yes
USB Type-C Detail
(1) USB3.1 TYPE-C (@ rear)
Number of SATA Interfaces
4
Power Description
Input Voltage
230 V AC
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
2000 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
2U
Height
3.4"
Width
17.3"
Depth
28.7"
Weight (Approximate)
74.96 lb
Miscellaneous
Package Contents
- Transport CX TN73-B8037-X4S 2U4N 1S 8-DIMM NVMe/SATA HCI Server
- 1 x Quick Installation Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
