TYN-B8037T73X4-200PE4HR-00
MPN: B8037T73X4-200PE4HR

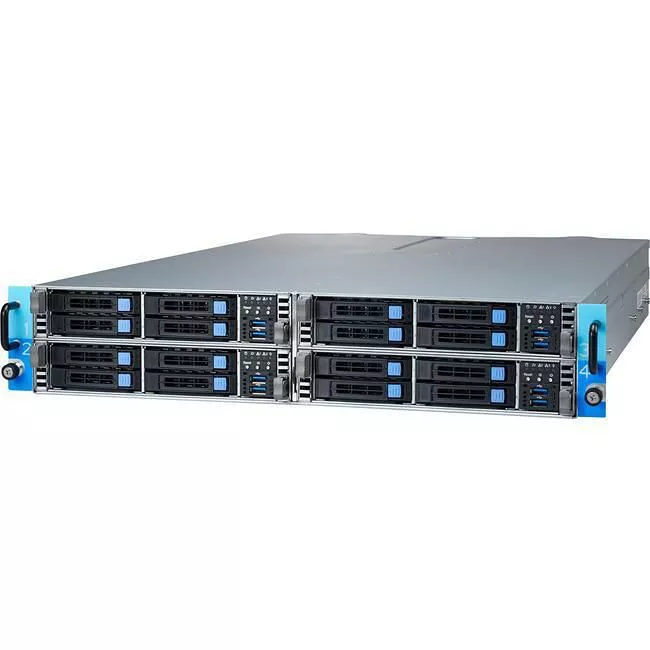

TYAN B8037T73X4-200PE4HR Transport CX TN73-B8037-X4S Barebone - 2U Rack - 4x AMD EPYC (Rome) Sleds - SP3

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B8037T73X4-200PE4HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Transport CX
Product Model
TN73-B8037-X4S
Product Name
Transport CX TN73-B8037-X4S Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket SP3
Processor Supported
EPYC
64-bit Processing
Yes
Memory
Maximum Memory Supported
4 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-3200/PC4-25600
Number of Total Memory Slots
8
Controllers
Controller Type
  • Serial ATA/600
  • 12Gb/s SAS
    • RAID Supported
    No
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Technology
    DDR4 SDRAM
    Graphics Memory Accessibility
    Shared
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    4
    Number of Internal 2.5" Bays
    4
    Total Number of Expansion Slots
    2.0
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    3
    Number of USB 3.1 Gen 1 Ports
    2
    USB Type-C (Rear)
    Yes
    USB Type-C Detail
    (1) USB3.1 TYPE-C (@ rear)
    Number of SATA Interfaces
    4
    Power Description
    Input Voltage
    230 V AC
    Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    2000 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.4"
    Width
    17.3"
    Depth
    28.7"
    Weight (Approximate)
    74.96 lb
    Miscellaneous
    Package Contents
    • Transport CX TN73-B8037-X4S Barebone System
    • 1 x Quick Installation Guide
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year
