TYN-B8021G88V2HR-2T-N-00
MPN: B8021G88V2HR-2T-N

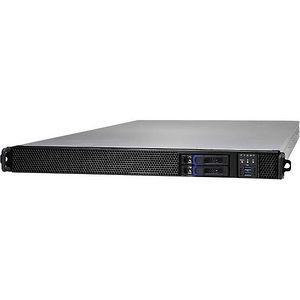

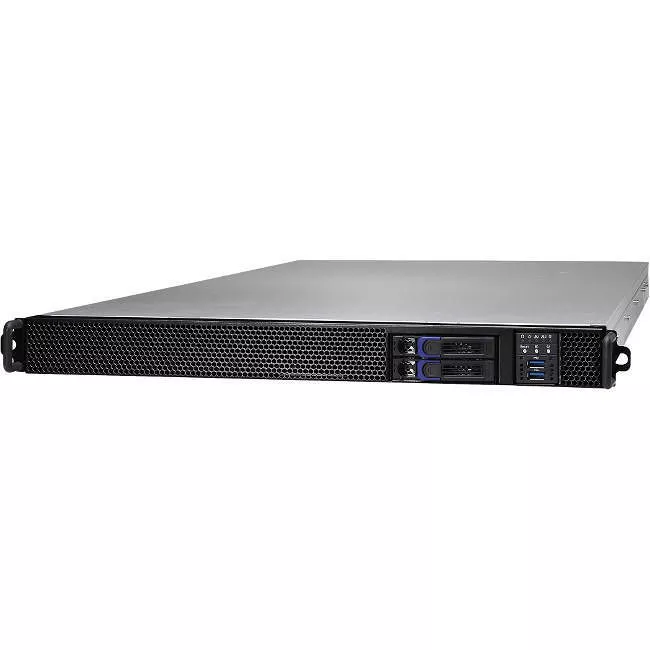

TYAN B8021G88V2HR-2T-N GA88-B8021 1U Rack Barebone - 4x GPU - Socket SP3 - AST2500

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B8021G88V2HR-2T-N
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Transport HX
Product Model
GA88-B8021
Product Name
Transport HX GA88-B8021
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket SP3
Processor Supported
EPYC
64-bit Processing
Yes
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
16
Controllers
Controller Type
  • Serial ATA/600
  • 12Gb/s SAS
    • Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    32 MB
    Network & Communication
    Ethernet Technology
    10 Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    2
    Number of Internal 2.5" Bays
    2
    Number of Total Expansion Slots
    5
    Number of PCI Express x16 Slots
    5
    Interfaces/Ports
    Total Number of USB Ports
    3
    Number of USB 3.0 Ports
    3
    Number of SATA Interfaces
    2
    Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    1600 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.2"
    Depth
    34.8"
    Weight (Approximate)
    29.76 lb
    Miscellaneous
    Package Contents
    • Transport HX GA88-B8021
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    3 Year
