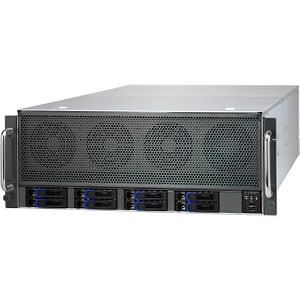

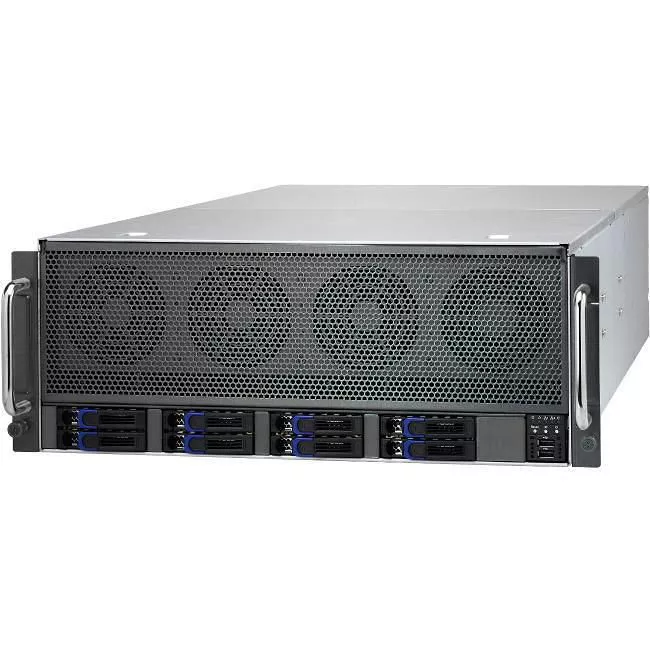

TYAN B7922F76U8HR-4T 4U Rackmount Barebone - Intel C602-J Chipset - 4X Socket R1

MPN: B7922F76U8HR-4T
Highlights
  • Number of Processors Supported: 4
  • Processor Socket: Socket R1 LGA-2011
  • Maximum Memory: 12 TB
  • Memory Standard: DDR4-1866/PC4-14900
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7922F76U8HR-4T
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
FT76B7922
Product Name
FT76B7922 Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
4
Processor Socket
Socket R1 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C602-J
Memory
Maximum Memory Supported
12 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-1866/PC4-14900
Number of Total Memory Slots
96
Controllers
Controller Type
  • Serial ATA/600
  • 12Gb/s SAS
  • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2400
    Graphics Memory Capacity
    16 MB
    Network & Communication
    Ethernet Technology
    10 Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    8
    Number of Internal 2.5" Bays
    8
    Number of Total Expansion Slots
    13
    Number of PCI Express x8 Slots
    13
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of SATA Interfaces
    2
    Software
    Operating System Supported
  • Windows Server 2008 R2 x64
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Red Hat Enterprise Linux 6.5 x64
  • Red Hat Enterprise Linux 7.1 x64
  • Red Hat Enterprise linux 7.3 x64
  • SuSE Linux Enterprise Server 12 x64
  • Ubuntu 14.04 LTS x64
  • Ubuntu 15.10 x64
  • Debian Linux 8.1.0 x64
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    4
    Maximum Power Supply Wattage
    4800 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    6.9"
    Width
    17.2"
    Depth
    29.9"
    Miscellaneous
    Package Contents
    • FT76B7922 Barebone System
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    • 1 x P3250USR-8I LSI SAS Mezz Card
    • 1 x P1210C-2T Intel 10GbE LAN Mezz Card
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
    Warranty
    Limited Warranty
    3 Year
