TYN-B7109F77DV4HR-2T-NF-00
MPN: B7109F77DV4HR-2T-NF

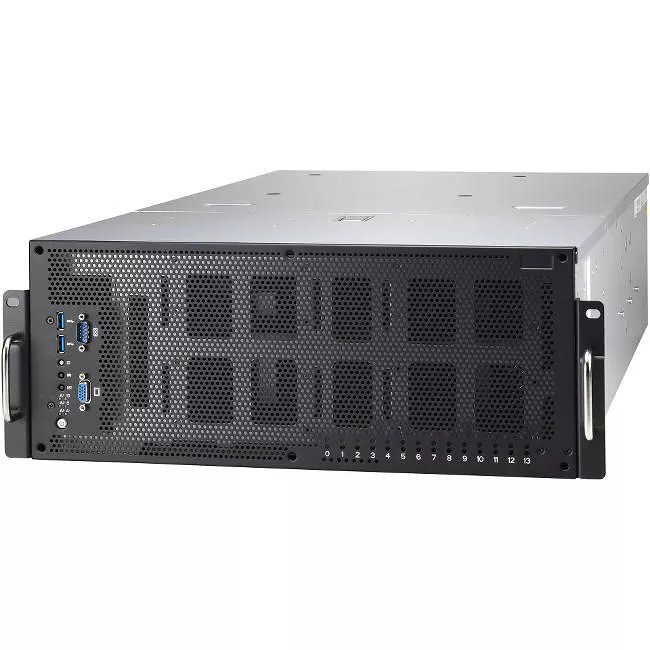

TYAN B7109F77DV4HR-2T-NF HX FT77D-B7109 4U Rackmount Barebone - 4x GPU - C621 Chipset - LGA-3647


Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7109F77DV4HR-2T-NF
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder HX
Product Model
FT77D-B7109
Product Name
Thunder HX FT77DB7109 (B7109F77DV4HR-2T-NF)
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Bronze
  • Xeon Silver
  • 64-bit Processing
    Yes
    Chipset
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory Supported
    3 TB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Number of Total Memory Slots
    24
    Controllers
    Controller Type
  • Serial ATA/600
  • 12Gb/s SAS
  • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    32 MB
    Network & Communication
    Ethernet Technology
  • 10 Gigabit Ethernet
  • Gigabit Ethernet
  • I/O Expansions
    Number of Total Expansion Bays
    4
    Number of Total Expansion Slots
    11
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    9
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 3.0 Ports
    2
    Number of SATA Interfaces
    4
    Number of SAS Interfaces
    1
    Operating System
    Operating System Supported
  • Windows Server 2016 x64
  • Windows Server 2012 R2 x64
  • Windows 10 x64
  • Red Hat Enterprise Linux 6.9 x64
  • Red Hat Enterprise linux 7.3 x64
  • Red Hat Enterprise linux 7.4 x64
  • CentOS 6.9 x64
  • CentOS 7.3 x64
  • CentOS 7.4 x64
  • SuSE Linux Enterprise Server 11
  • SUSE Linux Enterprise Server 12
  • Ubuntu 16.04.3 LTS x64
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    3
    Maximum Power Supply Wattage
    3200 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    6.9"
    Width
    17.2"
    Depth
    30.3"
    Weight (Approximate)
    57.32 lb
    Miscellaneous
    Package Contents
    • Thunder HX FT77DB7109 (B7109F77DV4HR-2T-NF)
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    3 Year
