TYN-B7109F77DV10E4HR-2T-NF-00
MPN: B7109F77DV10E4HR-2T-NF

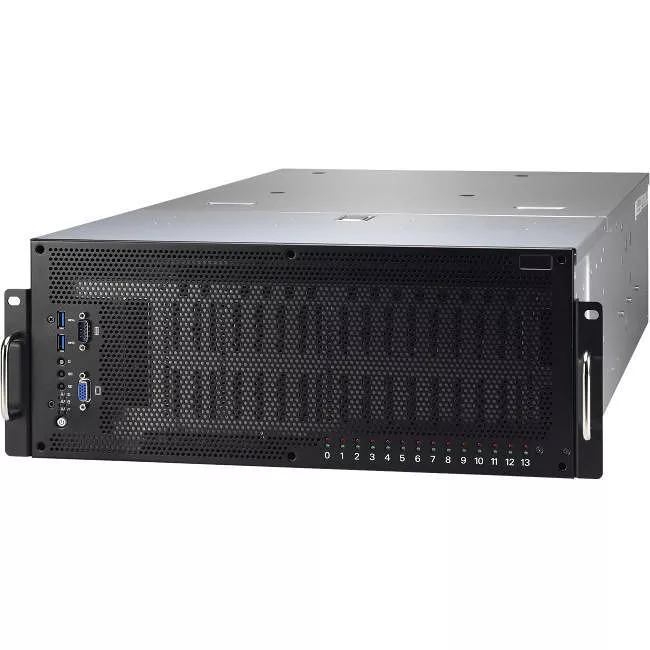

TYAN B7109F77DV10E4HR-2T-NF Thunder HX FT77DB7109 4U 8GPU Rack Barebone-C621- 2x Socket P LGA-3647

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7109F77DV10E4HR-2T-NF
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder HX
Product Model
FT77DB7109
Product Name
Thunder HX FT77DB7109 (B7109F77DV10E4HR-2T-NF)
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Silver
  • Xeon Bronze
    • 64-bit Processing
    Yes
    Chipset
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory Supported
    3 TB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Number of Total Memory Slots
    24
    Controllers
    Controller Type
  • Serial ATA/600
  • 12Gb/s SAS
    • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    32 MB
    Network & Communication
    Ethernet Technology
    10 Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    14
    Number of Internal 2.5" Bays
    14
    Number of Total Expansion Slots
    10
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    8
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 3.0 Ports
    2
    Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    3
    Maximum Power Supply Wattage
    3200 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    6.9"
    Width
    17.2"
    Depth
    30.3"
    Weight (Approximate)
    57.32 lb
    Miscellaneous
    Package Contents
    • Thunder HX FT77DB7109 (B7109F77DV10E4HR-2T-NF)
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    3 Year
