TYN-B7108T200X4-220PV3HR-00
MPN: B7108T200X4-220PV3HR

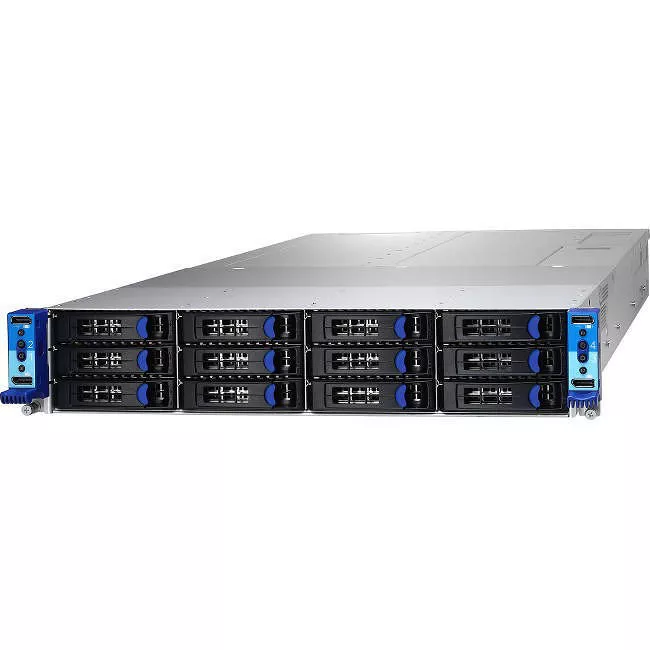

TYAN B7108T200X4-220PV3HR Thunder CX 2U Rack Barebone- Intel C621-4 Node-2x Socket P LGA-3647


Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7108T200X4-220PV3HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder CX
Product Model
TN200B7108-X4L
Product Name
Thunder CX TN200B7108-X4L (B7108T200X4-220PV3HR)
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Nodes
4
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Silver
  • Xeon Bronze
  • 64-bit Processing
    Yes
    Chipset
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory Supported
    2 TB
    Memory Technology
    DDR4 SDRAM
    Number of Total Memory Slots
    16
    Controllers
    Controller Type
  • 12Gb/s SAS
  • Serial ATA/600
  • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    32 MB
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    3
    Number of 3.5" Bays
    3
    Total Number of Expansion Slots
    2.0
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.0 Ports
    2
    Number of SATA Interfaces
    12
    Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    2200 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.4"
    Width
    17.5"
    Depth
    33.4"
    Weight (Approximate)
    66.14 lb
    Miscellaneous
    Package Contents
    • Thunder CX TN200B7108-X4L (B7108T200X4-220PV3HR)
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year
