MPN: B7108T200X4-220PE6HR

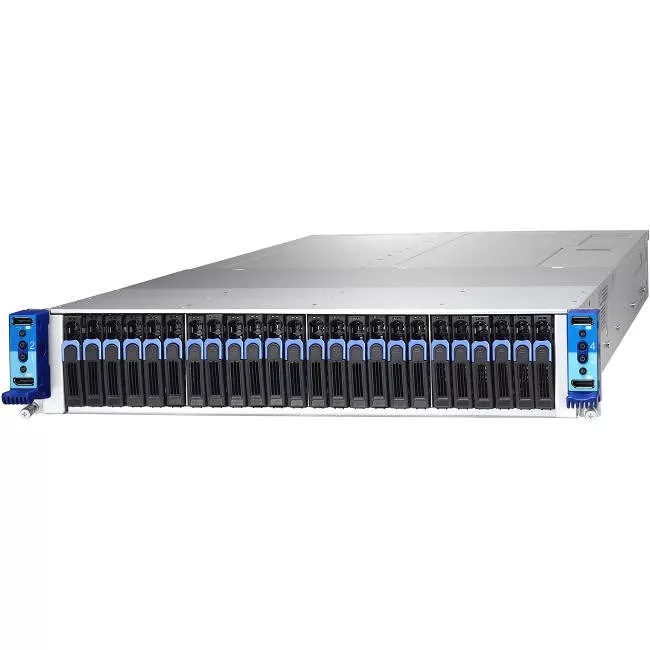

TYAN B7108T200X4-220PE6HR Thunder CX 2U Rack Barebone - Intel C621 Chipset - 2X Socket LGA3647
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7108T200X4-220PE6HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder CX
Product Model
TN200B7108-X4S
Product Name
Thunder CX TN200B7108-X4S (B7108T200X4-220PE6HR)
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Nodes
4
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Number of Total Memory Slots
16
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
24
Number of Internal 2.5" Bays
24
Total Number of Expansion Slots
3.0
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Operating System
Operating System Supported
Power Description
Input Voltage
230 V AC
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
2200 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
2U
Height
3.4"
Width
17.5"
Depth
33.4"
Weight (Approximate)
66.14 lb
Miscellaneous
Package Contents
- Thunder CX TN200B7108-X4S (B7108T200X4-220PE6HR)
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
