TYN-B7086G70V8HR-00
MPN: B7086G70V8HR

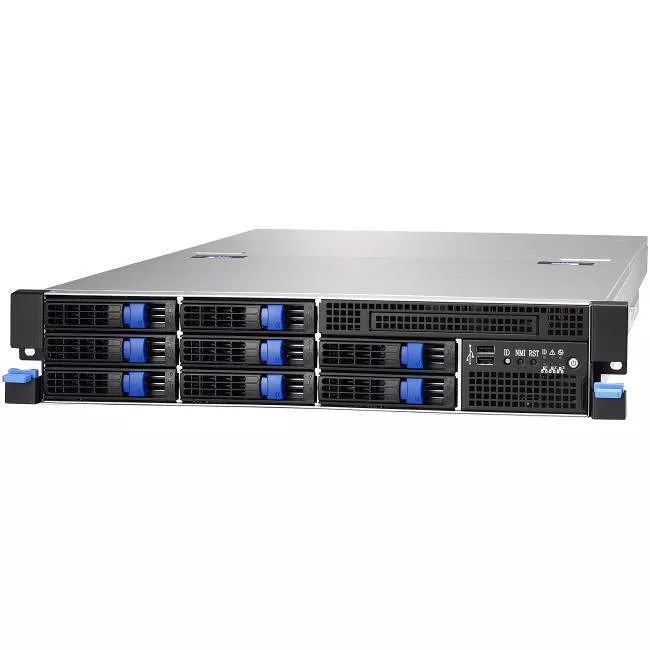

TYAN B7086G70V8HR GN70B7086 2U Rackmount Barebone - C612 Chipset - LGA-2011


Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7086G70V8HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
GN70-B7086
Product Name
GN70-B7086 Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket R3 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
16
Controllers
Controller Type
  • Serial ATA/600
  • 12Gb/s SAS
  • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2400
    Graphics Memory Capacity
    16 MB
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    8
    Number of 3.5" Bays
    8
    Total Number of Expansion Slots
    3.0
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Operating System
    Operating System Supported
  • Windows 7
  • Windows 7 x64
  • Windows 8
  • Windows 8 x64
  • Windows 8.1
  • Windows 8.1 x64
  • Windows Server 2008 R2 x64
  • Windows Server 2012 R2
  • Windows Server 2012 R2 x64
  • Red Hat Enterprise Linux 5.8
  • Red Hat Enterprise Linux 5.8 x64
  • SuSE Linux Enterprise Server 10
  • SuSE Linux Enterprise Server 10 x64
  • SuSE Linux Enterprise Server 11
  • SuSE Linux Enterprise Server 11 x64
  • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    770 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.4"
    Width
    17.7"
    Depth
    27.6"
    Miscellaneous
    Package Contents
    • GN70-B7086 Barebone System
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year
