MPN: B7086G70V6E2HR

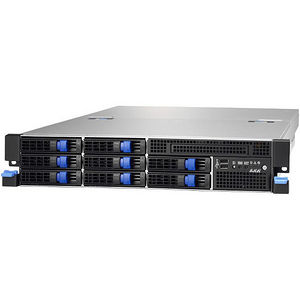

TYAN B7086G70V6E2HR GN70B7086 2U Rackmount Barebone - C612 Chipset - Socket R3 LGA-2011
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7086G70V6E2HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
GN70-B7086
Product Name
GN70-B7086 Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket R3 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
16
Controllers
Controller Type
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Graphics Memory Capacity
16 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
8
Number of 3.5" Bays
8
Number of Total Expansion Slots
3
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of SATA Interfaces
6
Operating System
Operating System Supported
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
770 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
2U
Height
3.4"
Width
17.7"
Depth
27.6"
Miscellaneous
Package Contents
- GN70-B7086 Barebone System
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
