Highlights:
  • Number of Processors Supported: 2
  • Processor Socket: Socket R LGA-2011
  • Maximum Memory: 3 TB
  • Memory Standard: DDR4-2133/PC4-17000
Contact sales for pricing
Bring your enterprise to the future of server technology! TYAN server solutions offer industry-leading form factors and the features required to build best-in-class server systems to meet your requirements. Aggressively-priced and specifically-engineered for a wide range of applications, TYAN barebones servers and server chassis enclosures provide OEMs, VARs and S/Is with simplified, cost-effective components and solutions for building robust, feature-rich servers.
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7079F77CV10HR-N
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
FT77CB7079
Product Name

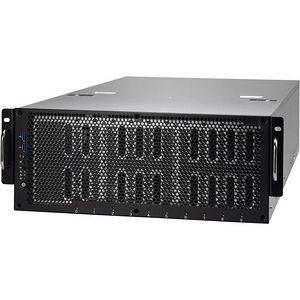

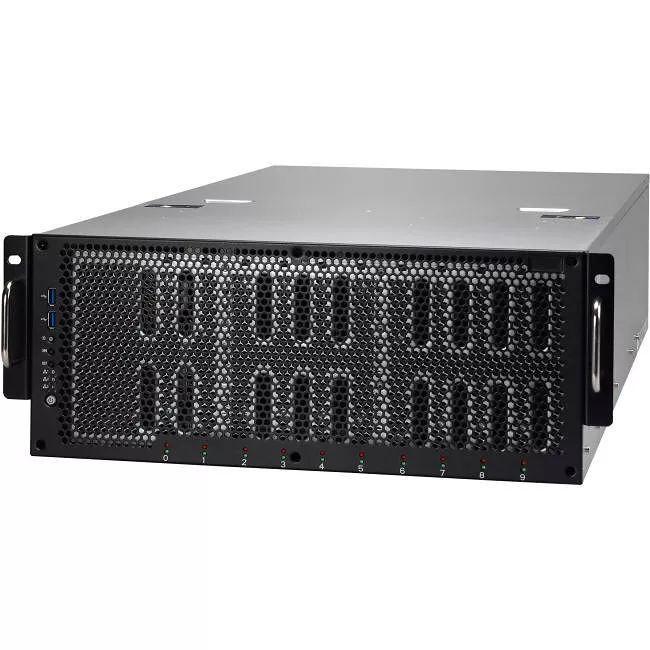

FT77CB7079 Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
3 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
24
Controllers
Controller Type
  • Serial ATA/600
  • 6Gb/s SAS
  • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2400
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    10
    Number of Total Expansion Slots
    13
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    8
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.0 Ports
    2
    Number of SATA Interfaces
    10
    Number of SAS Interfaces
    8
    Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Number of Power Supplies Installed
    3
    Maximum Power Supply Wattage
    3200 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    6.9"
    Width
    17.2"
    Depth
    30.3"
    Miscellaneous
    Package Contents
    • FT77CB7079 Barebone System
    • 1 x Quick Installation Guide
    • 1 x TYAN Installation CD
    • 1 x Display/USB2.0 Port via a Dongle Cable
    • 1 x CPU Air Duct
    • 8 x For NV-Tesla GPU Card brackets
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS-6
    Warranty
    Limited Warranty
    3 Year
