ABOUT
Bring your enterprise to the future of server technology! TYAN server solutions offer industry-leading form factors and the features required to build best-in-class server systems to meet your requirements. Aggressively-priced and specifically-engineered for a wide range of applications, TYAN barebones servers and server chassis enclosures provide OEMs, VARs and S/Is with simplified, cost-effective components and solutions for building robust, feature-rich servers.
See More
SPECIFICATIONS
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7076G62BV10HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Series
GT62B
Product Model
GT62BB7076
Product Name

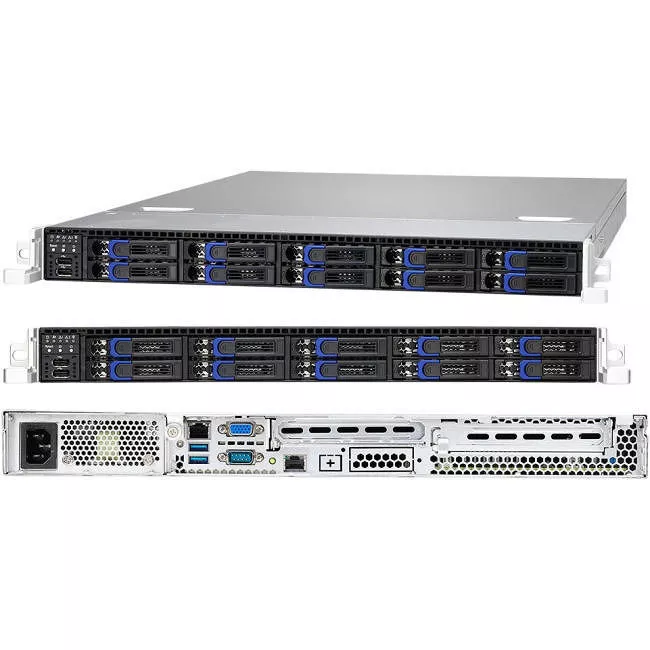

GT62BB7076 Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
16
Controllers
Controller Type
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
10
Number of Internal 2.5" Bays
10
Number of Total Expansion Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
2
Number of SATA Interfaces
10
Number of SAS Interfaces
1
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
650 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
24.6"
Miscellaneous
Package Contents
- GT62BB7076 Barebone System
- 1 x Quick Installation Guide
- 1 x TYAN installation CD
Environmentally Friendly
Yes
Environmental Certification
RoHS-6
Warranty
Limited Warranty
3 Year
