SMC-SYS-F648G2-FC0PT+-00
MPN: SYS-F648G2-FC0PT+

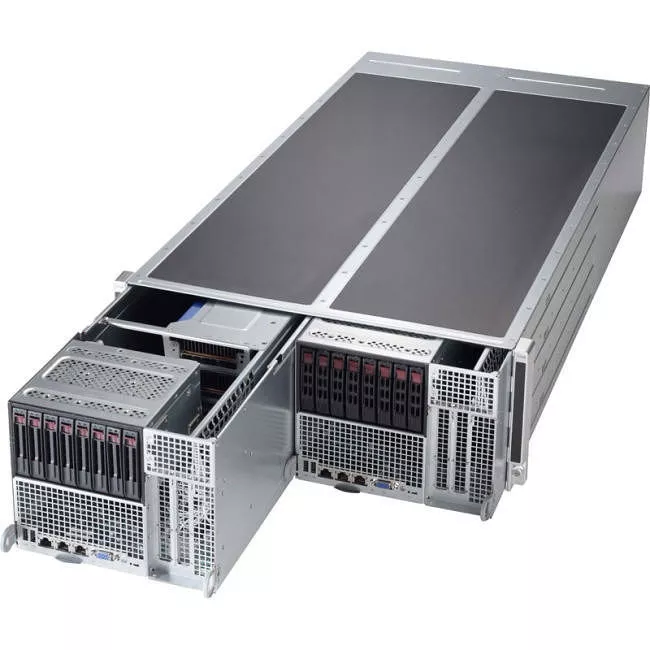

Supermicro SYS-F648G2-FC0PT+ 4U Rack Barebone - C612 Chipset - 2 Nodes - 2X Socket LGA 2011-v3

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-F648G2-FC0PT+
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
F648G2-FC0PT+
Product Name
SuperServer F648G2-FC0PT+ (Black)
Product Type
Barebone System
Processor
Number of Nodes
2
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
16
Controllers
Controller Type
  • 12Gb/s SAS
  • Serial ATA/600
    • RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2400
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    8
    Number of Internal 2.5" Bays
    8
    Total Number of Expansion Slots
    8.0
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    6
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 3.0 Ports
    2
    Number of SATA Interfaces
    8
    Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    4
    Maximum Power Supply Wattage
    2000 W
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    7"
    Width
    17.6"
    Depth
    35"
    Weight (Approximate)
    105 lb
    Miscellaneous
    Package Contents
    • SuperServer F648G2-FC0PT+ (Black)
    • 4 x Super X10DRFF-CTG Motherboard
    • 1 x 4U Chassis
    • 2 x RoHS/REACH,PBF SAS3 BPN - 8x2.5" SSD/HDD hotswap drive bays for CSE-M28SAC chassis,overheat indicator,SGPIO support SES2 mngt,2 mini-SAS HD connector(SFF-8643),1 fan connector with fan fail detection
    • 4 x Backplane adapter card for 4UGPU,RoHS/REACH,PBF
    • 4 x BPN;SASADP;SAS827-H8;H8DTT;cable req
    • 2 x 8 pin male to two big 4 pin female power cable, 35cm and 22cm. 18AWG,HF,RoHS/REACH,PBF
    • 4 x Internal Mini-SAS HD to Mini-SAS HD 25cm,30AWG,HF,RoHS/REACH,PBF
    • 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
    • 1 x A Quick Reference Guide for SYS-F648G2-FC0(PT)+,HF,RoHS/REACH
    • 2 x RSC-R4UFF-A4E16B
    • 2 x RSC-R2UFF-X2E16B ,RoHS/REACH,PBF
    • 2 x RSC-R4UFF-A2E16A
    • 4 x 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
    • 4 x AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    1 Year

    Specifications
