ABOUT
Supermicro's quad-processor Xeon® E7-8800/4800 v3 servers support 11 PCI-E 3.0 and up to 6TB of DDR4 memory in 96 DIMM slots. These servers are designed for enterprise mission critical applications, Cloud Computing, HPC, virtualization, and simulations.
See More
SPECIFICATIONS
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-8048B-TR3F
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
8048B-TR3F
Product Name

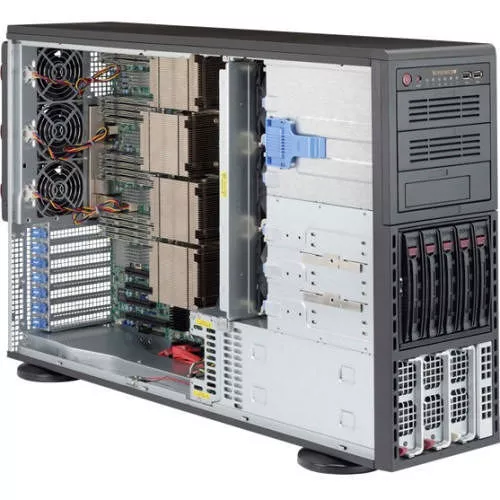

SuperServer 8048B-TR3F (Black)
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
4
Processor Socket
Socket R1 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C602J
Memory
Maximum Memory
2 TB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1600/PC3-12800
Number of Total Memory Slots
32
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
I/O Expansions
Number of Total Expansion Bays
5
Number of 3.5" Bays
5
Number of Total Expansion Slots
4
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
3
Number of SATA Interfaces
6
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1400 W
Physical Characteristics
Color
Black
Form Factor
Tower
Rack Height
4U
Height
18.2"
Width
7"
Depth
28.4"
Weight (Approximate)
65.48 lb
Miscellaneous
Package Contents
- SuperServer 8048B-TR3F (Black)
- 1 x CSE-748TQ-R1K43B Chassis
- 1 x Super X10QBL Motherboard
- 1 x Mylar air shroud for SC748 (X10QBL-CT),RoHS/REACH
- 1 x M35 SAS BACKPLANE W/AMI MG9072
- 2 x 8 pin to 8 pin ribbon SGPIO cable with tube, 60cm, PBF
- 5 x SATA CABLE 57.5CM FLAT S-S PBF. 26AWG flat
- 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
- 1 x Standard I/O shield for X10QBL-CT with EMI Gasket,RoHS/REACH
- 4 x 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
- 2 x 1400W redundant digital power supply
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
