MPN: SYS-8046B-TRLF

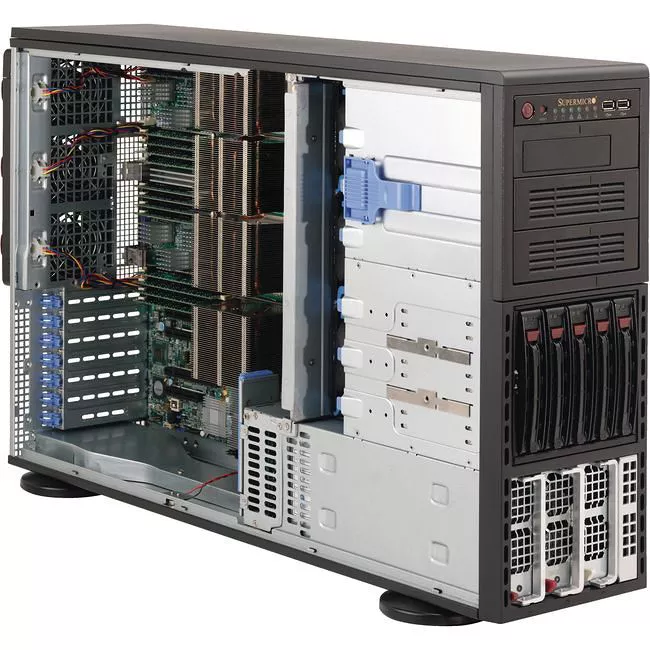

Supermicro SYS-8046B-TRLF 4U Tower Barebone System - Intel 7500 Chipset - 4X Socket LGA-1567
Highlights
About
Specifications
Supermicro's quad-processor tower/4U Xeon 7500 servers support PCI-E 2.0 and up to 512GB of DDR3 memory in 32 DIMM slots. These servers are designed for enterprise computing applications such as virtualization, HPCC and EPIC.
About
Supermicro's quad-processor tower/4U Xeon 7500 servers support PCI-E 2.0 and up to 512GB of DDR3 memory in 32 DIMM slots. These servers are designed for enterprise computing applications such as virtualization, HPCC and EPIC.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-8046B-TRLF
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
8046B-TRLF
Product Name
SuperServer 8046B-TRLF Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
4
Processor Socket
Socket LGA-1567
Processor Supported
Xeon
QuickPath Interconnect Supported
Yes
QuickPath Interconnect
6.40 GT/s
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
7500
Memory
Maximum Memory Supported
512 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1333/PC3-10600
Number of Total Memory Slots
32
Controllers
Controller Type
Serial ATA/300
RAID Supported
Yes
RAID Levels
0, 1, 5
Display & Graphics
Graphics Controller Manufacturer
Matrox
Graphics Controller Model
G200eW
Graphics Memory Capacity
16 MB
Graphics Memory Technology
DDR2 SDRAM
Network & Communication
Ethernet Technology
I/O Expansions
Number of Total Expansion Bays
8
Number of External 5.25" Bays
3
Number of 3.5" Bays
5
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 2.0 Ports
5
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
5
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1400 W
Physical Characteristics
Product Color
Black
Form Factor
Tower
Rack Height
4U
Height
17.8"
Width
7"
Depth
28.4"
Weight (Approximate)
65.50 lb
Miscellaneous
Package Contents
- SuperServer 8046B-TRLF Barebone System
- 1 x Super X8QBE-LF Motherboard
- 1 x SC748 4U Chassis
- 1 x CSE-SAS-M35TQ-O-P Backplane
- 5 x SATA CABLE 61CM FLAT S-S PBF
- 2 x 8pin to 8pin Cable for SGPIO, 61.5cm, PBF
- 1 x Driver for Intel Quad MBs
- 4 x 2U Passive CPU Heatsink for X8QBE/6
- 1 x OUTPUT CONNECTORS INCLUDE 24 PIN
- 2 x 1400W 1U GOLD LEVEL PWS W/ PM BUS & WX106MM
- 1 x Front Ctrl Cable ROUND 16 TO 16 PIN RIBBON 20"( 50cm)
- 2 x US Power Cord 16AWG 6ft, PBF (default for high watt)
- 3 x 4 TO 4 PIN MIDDLE FAN POWER EXTENSION, 200MM (PWM)
- 1 x 2CH USB 2.0 10p to 10p Cable, 77cm
- 3 x 4 to 4 pin Rear Fan Pwr ext w/ Square Header, 30cm (PWM)
- 3 x 92x92x38 mm, 7.5K RPM, PWM Fan for SC748 rev K
- 3 x 80x80x38 mm, 8.2K RPM, PWM Fan for 748 Rev K
- 3 x 5.25"" Drive Rail Set
- 2 x Black 5.25" Drive Tray w/o Rail (horizontal pattern)
- 1 x Black 5.25 Tray
Certifications & Standards
ACPI up to 3.0
Environmentally Friendly
Yes
Environmental Certification
EPEAT Gold
Warranty
Limited Warranty
3 Year
