ABOUT

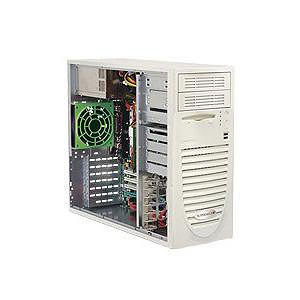

Supermicro's mid-tower workstation platform provides great performance and functionality at a barely audible noise level - perfect for workspace or home. Powered by the latest 64-bit Xeon processors, it is ideal for graphics-intensive applications, extreme gaming, or video rendering.
See More
SPECIFICATIONS
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-7034A-I
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperWorkstation
Product Model
7034A-I
Product Name
SuperWorkstation 7034A-I Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket PGA-604
Processor Supported
Front Side Bus
800 MHz
Chipset Manufacturer
Intel
Chipset Model
E7525
Memory
Maximum Memory
24 GB
Memory Technology
DDR SDRAM
Memory Standard
DDR266/PC2100
Number of Total Memory Slots
6
Controllers
Controller Type
RAID Supported
Yes
RAID Levels
0, 1
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
7
Number of External 5.25" Bays
2
Number of 3.5" Bays
1
Number of Total Expansion Slots
6
Number of PCI Slots
2
Number of PCI-X Slots
2
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
6
Network (RJ-45)
Yes
Audio Line In
Yes
Power Description
Input Voltage
Number of Power Supplies Installed
1
Physical Characteristics
Color
Beige
Form Factor
Mid-tower
Height
7"
Width
17.1"
Depth
21.4"
Weight (Approximate)
40 lb
Miscellaneous
Package Contents
- 1 x SuperWorkstation 7034A-I Barebone System
- 1 x Super X6DAL-G Motherboard
- 1 x Mid-Tower SC733i-645 Chassis
- 1 x IDE ATA 100/66 3-Drop Cable
- 1 x Front Panel Ribbon Cable (16-pin to 16-pin)
- 1 x Floppy Cable
- 1 x IDE CD-ROM Cable
- 1 x 6" Split Converter Cable
- 1 x 120mm 4000RPM Rear Exhaust Fan
- 1 x 90mm 4000RPM Front Fan
- 1 x SW7034A-i User's Manual
- 1 x TEAC 3.5" 1.44MB Floppy Drive
- 1 x 5.25" Dummy Tray in SC742/942 Chassis Series
- 1 x SP645-PS 645W Low Noise Power Supply
- 1 x I/O Shield
See More
