MPN: SYS-7033A-T

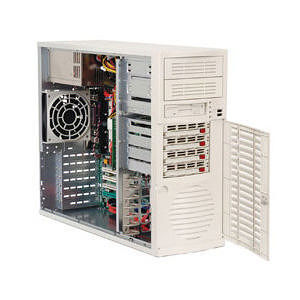

Supermicro SYS-7033A-T SuperWorkstation 7033A-T Barebone System

Highlights

Number of Processors Supported:

Maximum Memory:

8 GB

Number of Total Expansion Bays:

Product Type:

Server Barebone System

About

Specifications

Supermicros' mid-tower workstation platforms provide great performance and functionality at a barely audible noise level - perfect for workspace or home. Powered by the latest Pentium 4 or Xeon processors, they are ideal for graphics-intensive applications, extreme gaming, or video rendering.

Specifications

General Information

Manufacturer

Supermicro Computer, Inc

Manufacturer Part Number

SYS-7033A-T

Manufacturer Website Address

http://www.supermicro.com

Brand Name

Supermicro

Product Line

SuperWorkstation

Product Model

7033A-T

Product Name

SuperWorkstation 7033A-T Barebone System

Product Type

Server Barebone System

Processor

Number of Processors Supported

Processor Supported

Xeon

Chipset

Chipset Manufacturer

Intel

Chipset Model

E7505

Memory

Maximum Memory Supported

8 GB

Memory Technology

DDR SDRAM

Total Number of Memory Slots

Storage

Optical Drive Type

CD-Reader

Optical Media Supported

CD-ROM

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays

Number of External 5.25" Bays

Number of 3.5" Bays

Total Number of Expansion Slots

Number of PCI-X Slots

Interfaces/Ports

Total Number of USB Ports

Network (RJ-45)

Yes

Power Description

Input Voltage

110 V AC

220 V AC

Physical Characteristics

Form Factor

Mid-tower

Height

Width

16.7"

Depth

22"

Miscellaneous

Package Contents

1 x SuperWorkstation 7033A-T
1 x Super X5DAL-TG2 Motherboard
1 x Mid-Tower SC733T-450 Chassis (beige)
1 x SP450-RP Redundant Cooling 450W power supply
1 x TEAC 3.5" 1.44MB Floppy Drive
1 x 5.25" Dummy Tray in SC742/942 Chassis Series
4 x SCA Drive Tray for SC733 and SC813
1 x SATA Backplane with out SAF-TE for SC733T
1 x 120mm Slim Rear Exhaust Fan
1 x 90mm Front Fan with Shroud
1 x I/O Shield for dual LAN
4 x 2' SATA Cable
1 x Floppy Cable
1 x IDE CD-ROM Cable
1 x 10-pin SATA LED Cable
2 x Xeon CPU Retention for 604/603-pin CPU
2 x Xeon CPU Active Heatsink with Copper fin

Additional Information

Processor:

Dual mPGA604 ZIF Sockets
Supports up to two Intel Xeon processor(s) with 512KB L2 (or 1MB L3) integrated Advanced Transfer Cache up to 3.06GHz
System Bus 533MHz/400MHz

Memory:

Memory must be populated in pairs
Memory Type DDR 400/333/266

Serial ATA:

Dual Silicon 3112A controllers
Four Serial ATA ports
RAID 0, 1 Supported
RAID 0, 1, 5 Supported WITH ZCR Card (ZCRINT)

Input / Output:

8x/4x AGP Pro
Up to 6 USB 2.0 ports
1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support

BIOS Type:

4Mb Flash EEPROM with Phoenix BIOS
PC Health Monitoring:

CPU:

Monitors for CPU Cores, +3.3V, +5, ±12V, 3.3V Standby
CPU Core 3-Phase-switching voltage regulator w/ auto-sense from 1.4V-3.5V
Adjustable CPU clock frequency ratio settings (via BIOS)

FAN:

Total of six 3-pin fan headers
4x fans with tachometer monitoring
Overheat backup fan connector
Status monitor with firmware/software on/off control

Temperature:

Monitoring for CPU, chassis, environment
CPU thermal trip support

LED:

CPU Overheat LED
System Overheat LED
Suspend-state indicator LED

Other Features:

Chassis intrusion detection (through LDCM)
Chassis intrusion header
