Supermicro's X11 DP SuperServer® supporting latest Intel Xeon Scalable Processors offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's X11 DP SuperServer® supporting latest Intel Xeon Scalable Processors offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-6029TP-HC1R
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
6029TP-HC1R
Product Name

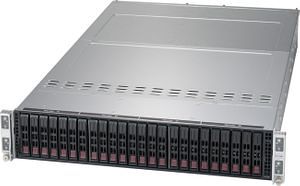

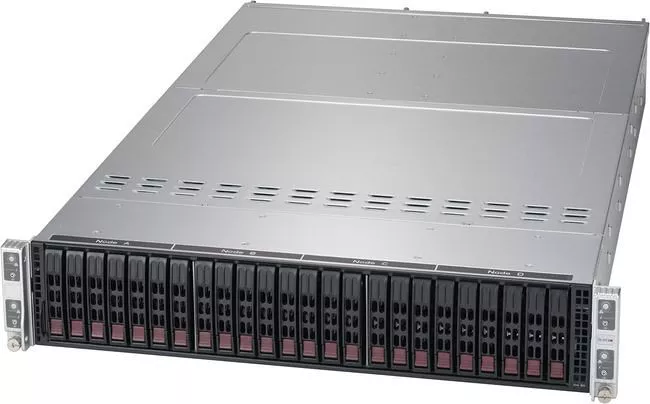

SuperServer 6029TP-HC1R (Black)
Product Type
Barebone System
Processor
Number of Nodes
4
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
4 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2933/PC4-23466
Total Number of Memory Slots
16.0
Intel Optane Memory Ready
Yes
Controllers
Controller Type
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
Ethernet
I/O Expansions
Number of Total Expansion Bays
3
Number of 3.5" Bays
3
Total Number of Expansion Slots
2.0
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SAS Interfaces
3
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
2200 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.3"
Depth
30.5"
Weight (Approximate)
72.09 lb
Miscellaneous
Package Contents
- SuperServer 6029TP-HC1R (Black)
- 4 x Super X11DPT-PS Motherboard
- 1 x 2U Chassis
- 4 x LSI 3108, SAS 12Gbps (x6 internal)
- 1 x 2U 12-Port 4-Node Backplane Supports 3x3.5
- 2 x PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
- 1 x TwinPro SC827HQ+ BPN retention bracket assembly
- 4 x Twinpro X11 air shroud
- 4 x RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
- 4 x 1U RHS TwinPro Riser card with one PCI-E x16 slot
- 4 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
- 4 x 1U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
- 2 x 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
- 4 x 80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan,RoHS/REACH
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
