Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-6028TR-DTR
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
6028TR-DTR
Product Name

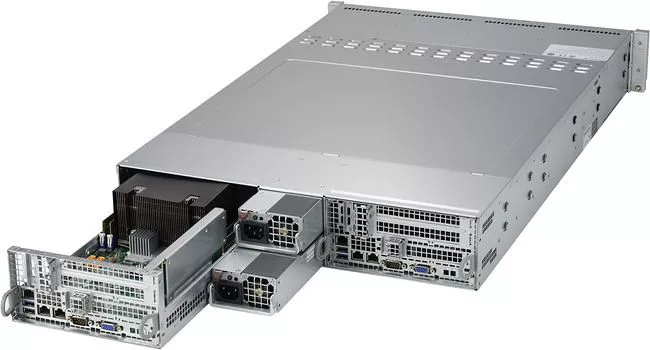

SuperServer 6028TR-DTR (Black)
Product Type
Barebone System
Processor
Number of Nodes
2
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
512 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
8
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
I/O Expansions
Number of Total Expansion Bays
6
Number of 3.5" Bays
6
Total Number of Expansion Slots
3.0
Number of PCI Express x8 Slots
3
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
8
Power Description
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1280 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.3"
Depth
28.5"
Weight (Approximate)
82.45 lb
Miscellaneous
Package Contents
- SuperServer 6028TR-DTR (Black)
- 2 x Super X10DRT-H Motherboard
- 1 x 2U Chassis
- 2 x SC827HD air shroud - Bigger size to support 135W CPU X9DRT-HF
- 1 x Sup 6x3.5ö SATA hdd; hot swap
- 2 x 6-PORT SATA ADAPTER FOR TWIN
- 4 x 21cm 30AWG SATA S-S cable
- 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
- 1 x MNL-SYS-6028TR-DTR/D72R,QRG
- 2 x 2U RHS Riser Card with 3 PCI-E x8 for X9DRT-HF Twin MBs
- 2 x 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
- 2 x 2U Passive Rear CPU Heat Sink for X9, X10 2U Twin 8-DIMM per Node Series Servers
- 2 x 1U 1280W, redundant single output power supply
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
