MPN: SYS-6019P-MTR

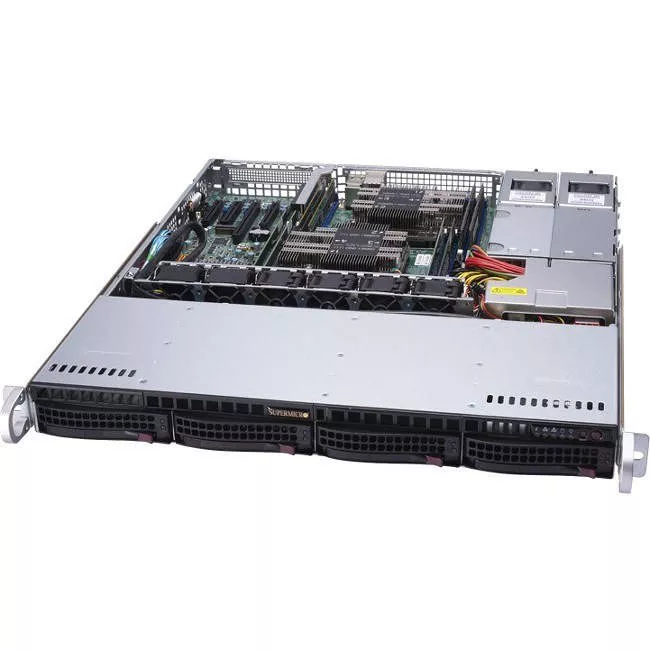

Supermicro SYS-6019P-MTR 1U Rack-mountable Barebone - Intel C621 Chipset - Dual Socket P LGA-3647
Highlights
About
Specifications
Supermicro's X11 DP SuperServer® supporting latest Intel Xeon Scalable Processors offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's X11 DP SuperServer® supporting latest Intel Xeon Scalable Processors offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-6019P-MTR
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
6019P-MTR
Product Name
SuperServer 6019P-MTR (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
8
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
4
Number of 3.5" Bays
4
Number of Total Expansion Slots
1
Number of PCI Express x8 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of SATA Interfaces
4
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
600 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
20"
Miscellaneous
Package Contents
- SuperServer 6019P-MTR (Black)
- 1 x Super X11DPL-i Motherboard
- 1 x 1U Chassis
- 1 x 1U 4-Port 12Gbps Backplane Support 4x3.5
- 1 x SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
- 1 x CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
- 1 x 1U I/O Shield for X11DPL-i with EMI Gasket
- 1 x SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12
- 1 x 6019P-MT/MTR Quick Reference Guide
- 1 x RSC-RR1U-E8
- 2 x 1U Passive Proprietary CPU Heat Sink for X11DPL Motherboard Equipped with a Square Retention Mechanism
- 2 x AC-DC 600W single output power supply Platinum Level, Redund
- 4 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
