MPN: SYS-6018R-WTR

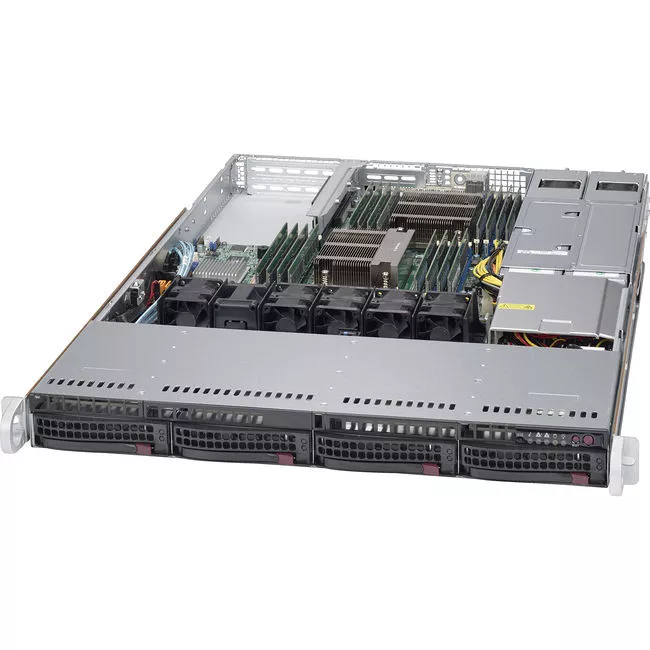

Supermicro SYS-6018R-WTR Barebone - 1U - Intel C612 Express Chipset - Socket LGA 2011-v3 - 2 x CPU
Highlights
About
Specifications
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-6018R-WTR
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
6018R-WTR
Product Name
SuperServer 6018R-WTR (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
QuickPath Interconnect Supported
Yes
QuickPath Interconnect
9.60 GT/s
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612 Express
Memory
Maximum Memory Supported
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
16
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
I/O Expansions
Number of 3.5" Bays
4
Number of Total Expansion Slots
3
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 3.0 Ports
6
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
10
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
750 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
25.6"
Miscellaneous
Package Contents
- SuperServer 6018R-WTR (Black)
- 1 x Super X10DRW-i Motherboard
- 1 x 1U Chassis
- 1 x BPN-SAS-815TQ-O-P
- 1 x SET OF 4 SATA 56/45.5/35/23CM ROUND S-RA. 26AWG
- 1 x 8 pin to 8 pin round SGPIO cable, 40cm, 28AWG, pinout 1-1,RoHS/REACH
- 1 x RSC-R1UW-2E16-O-P
- 1 x 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB
- 1 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
- 2 x 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
- 1 x Silver chassis rail set for SC813,814,815,816,819
Certifications & Standards
- ACPI 1.0
- ACPI 2.0
- ACPI 3.0
- ACPI 4.0
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
