SMC-SYS-5039MD8-H8TNR-00
MPN: SYS-5039MD8-H8TNR

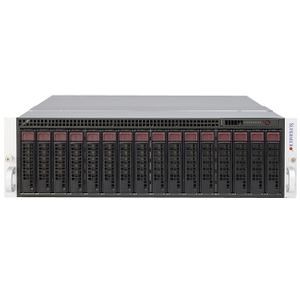

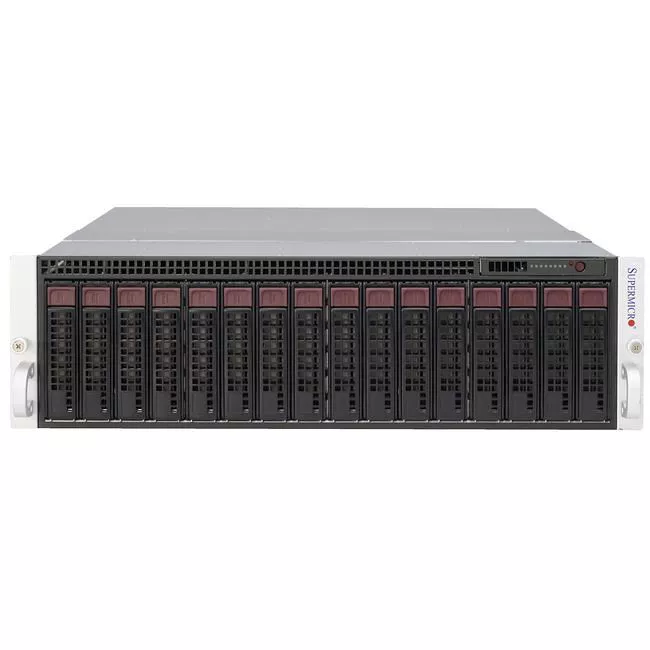

Supermicro SYS-5039MD8-H8TNR 3U Rackmount Barebone - 8X Nodes - Intel Xeon D-2141i Processor


Highlights

Specifications

  • Mfr Part Number: SYS-5039MD8-H8TNR
  • Motherboard: Super X11SDD-8C-F
  • Processor Per Node: FCBGA1667
    • Supports Intel Xeon D-2141I Processors
    • Supports up to 65W TDP
  • Chipset Per Node: System on Chip (SoC)
  • Memory Per Node: 4x 288pin DDR4-2133 MHz DIMM Slots, Supports up to 512GB ECC Load Reduced Memory or up to 256GB ECC/REG Memory
  • SATA Per Node: 2x SATA3 Ports via SoC
  • Video Per Node: Aspeed AST2500 BMC Graphics
  • LAN Per Node: 2x Intel i350 Gigabit Ethernet Controllers
  • Drive Bays Per Node: 2x 3.5" SATA3 (6Gbps) HDDs (or 2x 2.5" Hybrid SATA3/NVMe with optional kits)
  • Ports per Node: 2x RJ45 LAN Ports
  • Form Factor: 3U Rackmount
  • Power Supply: 1600W 80 PLUS Titanium Level Certified Redundant Power Supplies w/ PMBus
  • System Cooling: 4x 8cm Hot-swap cooling fans fan speed control
  • Color: Black
  • Dimensions (WxDxH): 15.26 x 23.00 x 5.20 inch / 387.0 x 585.0 x 132.0 mm
  • Weight: 62.20 lbs / 28.21 kg
  • RoHS Compliant
