MPN: SYS-5019GP-TT

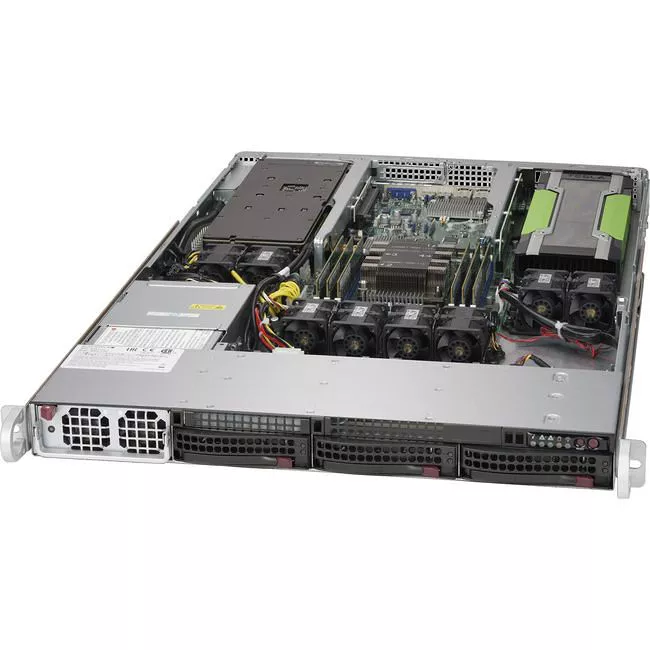

Supermicro SYS-5019GP-TT 1U Rackmount Barebone - Intel C621 - 1X LGA-3647 - Supports 2X GPU
Highlights
About
Specifications
Supermicro's X11 DP SuperServer® supporting latest Intel Xeon Scalable Processors offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's X11 DP SuperServer® supporting latest Intel Xeon Scalable Processors offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-5019GP-TT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
5019GP-TT
Product Name
SuperServer 5019GP-TT (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket P LGA-3647
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
768 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
6
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
4
Number of External 5.25" Bays
1
Number of 3.5" Bays
3
Number of Total Expansion Slots
3
Number of PCI Express x16 Slots
3
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
6
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
1400 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
28.2"
Weight (Approximate)
28 lb
Miscellaneous
Package Contents
- SuperServer 5019GP-TT (Black)
- 1 x Super X11SPG-TF Motherboard
- 1 x 1U SC818G Chassis
- 1 x 3-port 818 TQ (W/ AMI 9071) backplane, support up to 3x 3.5-inch SAS/SATA HDD
- 2 x SATA,INT,ROUND,ST-ST,55CM,30AWG
- 1 x SATA,INT,ROUND,ST-RA,70CM,30AWG
- 1 x CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
- 1 x PCIe 8 pin male(black) to CPU 8 pin female(white) power adapter, 5cm, 18AWG, 9A/pin, 0~80C, RoHS/REACH
- 1 x GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
- 1 x RSC-R1U-E16R
- 1 x 1U LHS Riser Card with one PCI-E x16 for UP GPU MBs
- 1 x 1U RHS Riser Card with 1 PCI-E x16 for UP GPU MB
- 1 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
- 1 x 1400W redundant digital power supply
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
