MPN: SYS-5018R-M

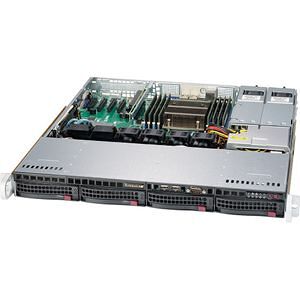

Supermicro SYS-5018R-M 1U Rack Barebone - Intel C612 Express Chipset - 1X Socket LGA 2011-v3
Highlights
About
Specifications
Designed to deliver solid performance and mission-critical reliability for customer applications, these Supermicro uni-processor 1U rack servers support the latest Xeon® processor E5-2600/1600 v3 family and deliver additional levels of performance, power-efficiency and reliability.
About
Designed to deliver solid performance and mission-critical reliability for customer applications, these Supermicro uni-processor 1U rack servers support the latest Xeon® processor E5-2600/1600 v3 family and deliver additional levels of performance, power-efficiency and reliability.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-5018R-M
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
5018R-M
Product Name
SuperServer 5018R-M (Black)
Product Type
Barebone System
Processor
Maximum Number of Cores per System
18
Number of Processors Supported
1
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
QuickPath Interconnect Supported
Yes
QuickPath Interconnect
9.60 GT/s
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612 Express
Memory
Maximum Memory Supported
512 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
8
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 1+0
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
I/O Expansions
Number of 3.5" Bays
4
Number of Total Expansion Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
4
Number of USB 3.0 Ports
2
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
10
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
350 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
19.8"
Weight (Approximate)
17.60 lb
Miscellaneous
Package Contents
- SuperServer 5018R-M (Black)
- 1 x Super X10SRi-F Motherboard
- 1 x 1U Chassis
- 1 x BPN-SAS-815TQ-O-P Backplance
- 1 x 8 pin to 8 pin ribbon SGPIO Cable with tube , 40cm, PBF
- 1 x SET OF 4 SATA 56/45.5/35/23CM ROUND S-RA. 26AWG
- BLACK TEAC SLIM DVD ROM SATA DRIVE ROHS,HF,RoHS/REACH,PBF
- BLACK PANASONIC SLIM DVD ROM SATA DRIVE ROHS
- 1 x RSC-RR1U-E16 with PCI-E x16 Output
- 1 x 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
- 1 x 1U 350W Multi Oouput 80PLUS GOLD PWS
- 1 x Front Ctrl Cable 16 PIN TO 16 PIN, LF, Flat (L=54cm)
- 4 x 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
- 4 x Black 3.5 Drive Tray(s)
- 1 set Third Generation Guide Rail ASSY. Outer slides extendable length: 26" to 33.5"
Certifications & Standards
ACPI 1.0 / 2.0
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
