ABOUT
Supermicro's NVIDIA Tesla supported SuperServers® establish the company as the true global leader in High-Performance, Enterprise-Class SuperComputing and GreenIT. Generating massively parallel processing power and unrivaled networking flexibility with PCI-E 3.0 expansion slots, 1G or 10G Ethernet, and FDR InfiniBand ports, these systems deliver the highest quality with extreme optimization for the most computationally-intensive applications.
See More
SPECIFICATIONS
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-4028GR-TVRT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
4028GR-TVRT
Product Name

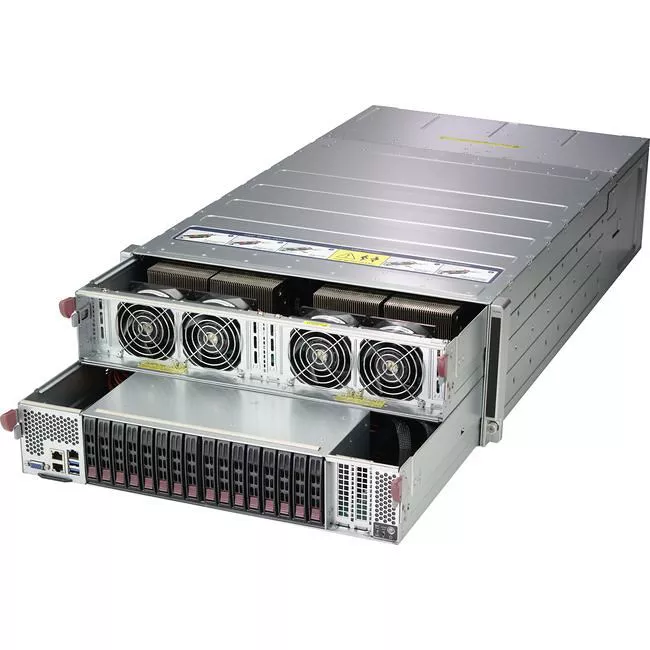

SuperServer 4028GR-TVRT (Black)
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket R3 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
3 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
24
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
16
Number of Internal 2.5" Bays
16
Number of Total Expansion Slots
6
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
4
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
10
Power Description
Input Voltage
Number of Power Supplies Installed
4
Maximum Power Supply Wattage
2200 W
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7"
Width
17.6"
Depth
31.7"
Weight (Approximate)
80 lb
Miscellaneous
Package Contents
- SuperServer 4028GR-TVRT (Black)
- 1 x Super X10DGO-T Motherboard
- 1 x CSE-R422BG Chassis
- 1 x Pascal 4U midplane, 2U Pascal node on top, and 2U CPU node on bottom. Support 8x fan/power module at rear side.,RoHS
- 1 x 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices
- 4 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH
- 3 x 2X4F/GPU-White/P4.2 to TWO 1X4F/P5.08, (5,12V),48/51CM,18AWG
- 2 x MINI SAS HD,12G,INT,25CM,30AWG
- 2 x OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
- 2 x OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG
- 4 x 2U 2200W 90-264VAC/47-63Hz, or wide DC input 180Vdc~300Vdc,
- 4 x 12Vdc input redundant FAN module power supports I2C function
- 2 x 2U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32
- 8 x 2U Passive GPU Heat Sink for NVIDIA Pascal and Volta GPUs in SYS-4028GR-TXR/TXRT Series Servers
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
