MPN: SYS-240P-TNRT

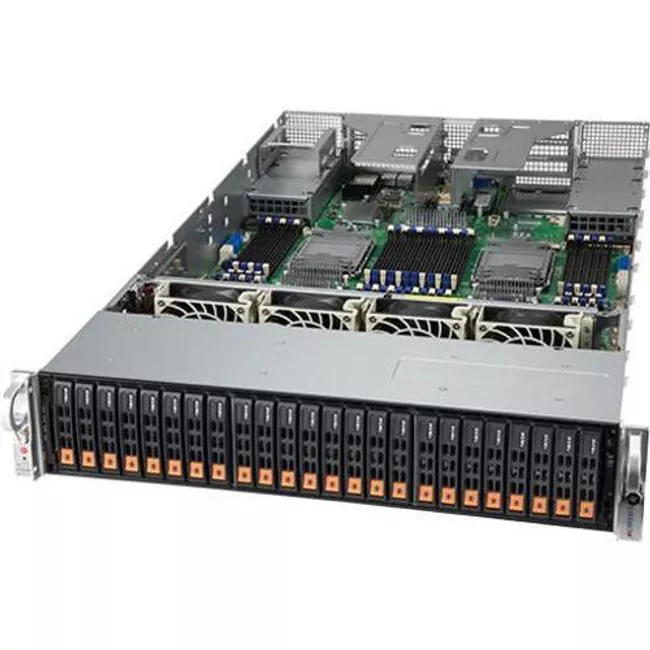

Supermicro SYS-240P-TNRT 2U Rackmount Server - 4x LGA-4189 Socket P+ - Intel C621 Chipset
Highlights
About
Specifications
Rackmount Servers
Superior Performance, Efficiency and Time-to-Market for Rapid Adoption
About
Rackmount Servers
Superior Performance, Efficiency and Time-to-Market for Rapid Adoption
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-240P-TNRT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
240P-TNRT
Product Name
SuperServer SYS-240P-TNRT (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
4
Processor Socket
Socket LGA-4189
Processor Supported
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
12 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-3200/PC4-25600
Number of Total Memory Slots
48
Intel Optane Memory Ready
Yes
Controllers
Controller Type
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
24
Number of Internal 2.5" Bays
24
Number of Total Expansion Slots
10
Number of PCI Express x8 Slots
6
Number of PCI Express x16 Slots
4
Power Description
Input Voltage
Maximum Power Supply Wattage
2000 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.3"
Depth
31.6"
Miscellaneous
Package Contents
- SuperServer SYS-240P-TNRT (Black)
- 1 x Super X12QCH+ Motherboard
- 1 x 2U Chassis
- 1 x 2U 24-slot all-hybrid direct-attached backplane, support 24x 2.5" NVME Gen4 / SAS / SATA storage devices.,RoHS
- 1 x 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
- 3 x [NR] 2x4,P3.0 to 2x4,P4.2,YL/RED,9.5A,55cm,16AWG,RoHS
- 1 x [NR] SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 39CM,32AWG,85 O
- 1 x [NR] SLIMLINE SAS x8 to SLIMLINE SAS x8, INT, 10CM,32AWG,85
- 4 x [NR]SlimlineLP x8 (STR) to SlimlineLP x8 (STR),8CM,85 OHM,Ro
- 3 x [NR]Slimline x4 (STR) to Slimline x4 (STR),INT,85CM,100 OHM
- 8 x Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design)
- 2 x Black 2.5"" HDD dummy cover for SC213,216 (Cover 8 HDD)
- 1 x 2U LHS DCO Riser card with two PCI-E 4.0 x16 and one PCI-E
- 1 x 2U RHS DCO Riser card with two PCI-E 4.0 x16 and one PCI-E
- 4 x 2U Passive Wide CPU Heatsink (92x113x65mm) for X12 ICX/CPX CPU, Heatpipe
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
1 Year
