SMC-SYS-2029P-TXRT-00
MPN: SYS-2029P-TXRT

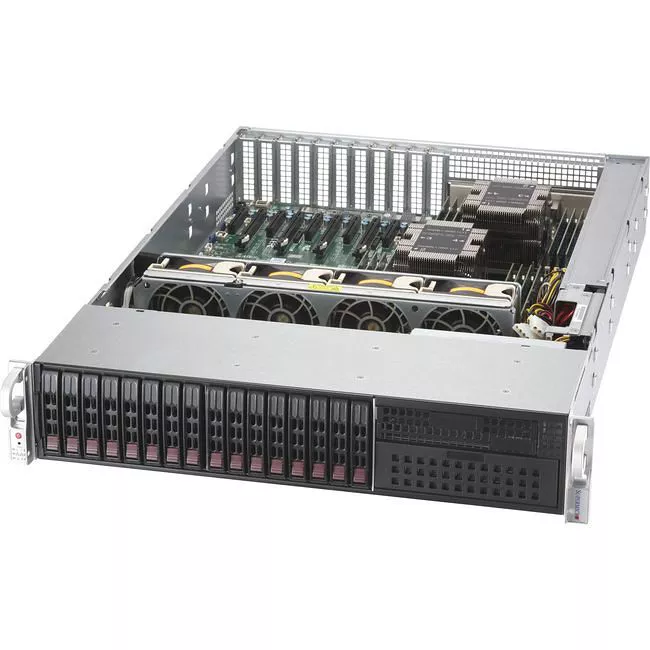

Supermicro SYS-2029P-TXRT SuperServer 2U Rack Barebone - Intel C621 Chipset - 2X Socket P LGA-3647

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-2029P-TXRT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
2029P-TXRT
Product Name
SuperServer 2029P-TXRT (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Silver
  • Xeon Bronze
    • 64-bit Processing
    Yes
    Chipset
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory Supported
    2 TB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Number of Total Memory Slots
    16
    Controllers
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Network & Communication
    Ethernet Technology
    10 Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    17
    Number of External 5.25" Bays
    1
    Number of Internal 2.5" Bays
    16
    Total Number of Expansion Slots
    9.0
    Number of PCI Express x8 Slots
    5
    Number of PCI Express x16 Slots
    4
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.0 Ports
    2
    Number of SATA Interfaces
    10
    Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    1000 W
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.5"
    Width
    17.2"
    Depth
    25.6"
    Weight (Approximate)
    36 lb
    Miscellaneous
    Package Contents
    • SuperServer 2029P-TXRT (Black)
    • 1 x Super X11DPX-T Motherboard
    • 1 x 2U Chassis
    • 1 x 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
    • 2 x MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG
    • 1 x STD I/O shield for X9/X10/X11 server MB with EMI Gasket & Mylar
    • 1 x Mylar Air Shroud for SC213X (X11DPX)
    • 1 x Plastic M.2 holder kit for X11 MB
    • 1 x 2029P-TXRT Quick Reference Guide
    • 2 x 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    • 2 x 1U 1000W Redundant Power Supply Titanium, 38X40X360mm length
    • 4 x 80x80x38 mm, 10.5K RPM, Middle Cooling Fan for SC213X Chassi
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year
