Supermicro's X11 DP SuperServer® supporting latest Intel Xeon Scalable Processors offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's X11 DP SuperServer® supporting latest Intel Xeon Scalable Processors offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-2029P-C1RT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
2029P-C1RT
Product Name

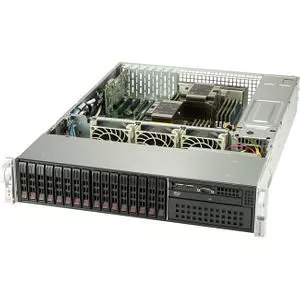

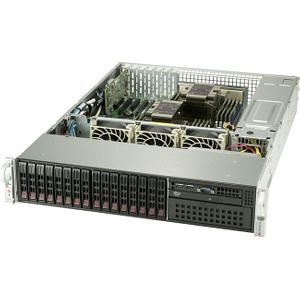

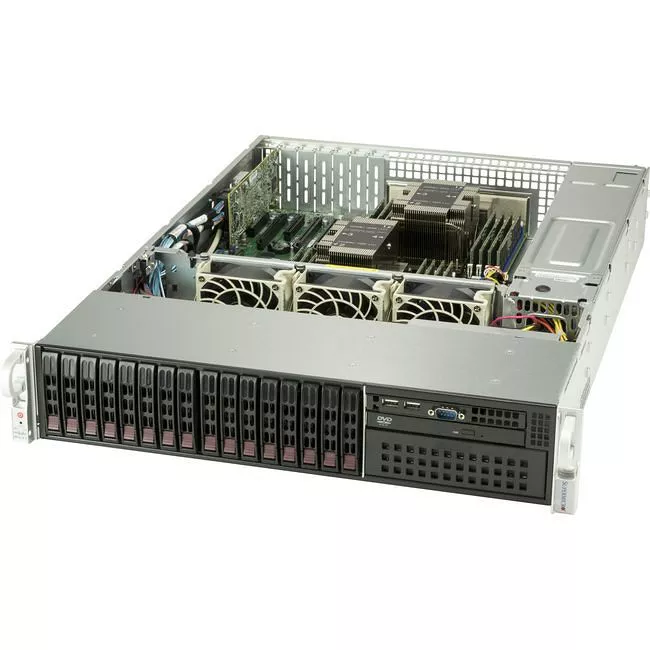

SuperServer 2029P-C1RT (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C622
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
16
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
17
Number of External 5.25" Bays
1
Number of Internal 2.5" Bays
16
Total Number of Expansion Slots
5.0
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
4
Interfaces/Ports
Total Number of USB Ports
7
Number of USB 3.0 Ports
2
Number of SATA Interfaces
8
Number of SAS Interfaces
8
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1200 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.2"
Depth
24.8"
Weight (Approximate)
38 lb
Miscellaneous
Package Contents
- SuperServer 2029P-C1RT (Black)
- 1 x Super X11DPi-NT Motherboard
- 1 x 2U Black SC213AC Chassis
- 1 x LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 16 drives with expander - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile
- 1 x 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
- 2 x MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG
- 2 x MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG
- 1 x MINI SAS HD,12G,INT,50CM,30AWG
- 1 x MINI SAS HD,12G,INT,35CM,30AWG
- 1 x Black USB/COM port tray for SC825, 836
- 1 x STD I/O shield for X9 socket R server MB with Gasket.
- 1 x SYS-2029P-C1R/SYS-2029P-C1RT, QRG
- 1 x 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
- 1 x 2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
- 2 x AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
- 3 x 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
