SMC-SYS-1029UZ-TN20R25M-00
MPN: SYS-1029UZ-TN20R25M

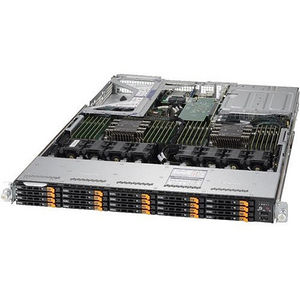

Supermicro SYS-1029UZ-TN20R25M 1U Rack Barebone - Intel C621 Chipset - LGA-3647 - 2 x CPU Support

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1029UZ-TN20R25M
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1029UZ-TN20R25M
Product Name
SuperServer 1029UZ-TN20R25M (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
3 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
24
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
25 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
20
Number of Internal 2.5" Bays
20
Total Number of Expansion Slots
2.0
Number of PCI Express x8 Slots
2
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 3.0 Ports
3
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    1600 W
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.2"
    Depth
    27.8"
    Miscellaneous
    Package Contents
    • SuperServer 1029UZ-TN20R25M (Black)
    • 1 x Super X11DPU-Z+ Motherboard
    • 1 x CSE-116UTQ20-R1K62-T
    • 2 x AOC-SLG3-2E4T-P
    • 1 x AOC-SLG3-4E4T-P
    • 1 x 1U Ultra Riser 2-port 25GbE SFP28, based on Mellanox Connect
    • 1 x 20-port 1U (CSE116U) NVMe direct-attached backplane, support up to 20x 7mm NVMe SSDs, 2 are hybrid ports also support SAS/SATA devices
    • 1 x 4 Pin to 4 Pin I2C cable, 30cm, 26AWG, 4 wires, pinout 1-1, for vpp header(jnvi2c1),RoHS/REACH
    • 1 x BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 42CM,18AWG, 11A/pin, -25~85C
    • 1 x BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 67CM,18AWG, 11A/pin, -25~85C
    • 3 x OCuLink v. 1.0,INT,PCIe NVMe SSD, 55CM,34AWG
    • 2 x OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
    • 2 x OCuLink v. 1.0,INT,PCIe NVMe SSD, 85CM,34AWG,RoHS/REACH
    • 8 x OcuLink v 1.0,INT,PCIe NVMe SSD, 76CM,34AWG
    • 5 x OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG
    • 1 x MINI SAS-2 SATA (RA),6G,INT,52CM,62CM SB,30AWG,RoHS
    • 1 x Mylar air shroud for SC116U (X11 24DIMM, left side)
    • 1 x 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE
    • 1 x RSC-UN4-88
    • 2 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    • 2 x AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
    • 8 x 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    • 1 x Rear window for SC819U, 119U tool-less chassis (m2TS)
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year
