MPN: SYS-1029U-TRTP

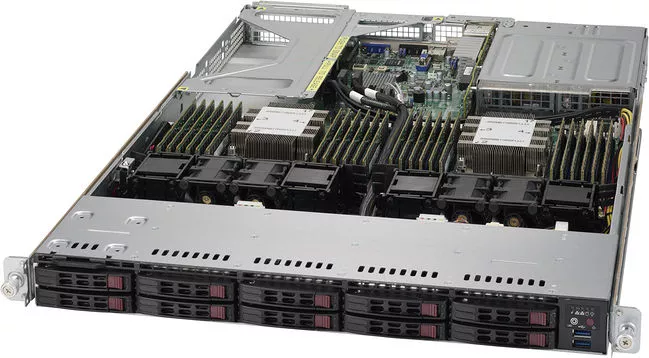

Supermicro SYS-1029U-TRTP 1U Rack-mountable Barebone - Intel C621 Chipset - Dual Socket P LGA-3647
Highlights
About
Specifications
Supermicro's X11 DP SuperServer® supporting latest Intel Xeon Scalable Processors offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's X11 DP SuperServer® supporting latest Intel Xeon Scalable Processors offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1029U-TRTP
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1029U-TRTP
Product Name
SuperServer 1029U-TRTP (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
3 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
24
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
10
Number of Internal 2.5" Bays
10
Number of Total Expansion Slots
4
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 3.0 Ports
5
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
750 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
28.5"
Weight (Approximate)
26 lb
Miscellaneous
Package Contents
- SuperServer 1029U-TRTP (Black)
- 1 x Super X11DPU Motherboard
- 1 x CSE-119UTS-R751-T Chassis
- 1 x 1U Ultra Riser based on Intel 82599ES controller with 2 10Gb SFP+ ports, 2 NVMe ports, and 1 internal PCI-E x8 3.0 slot
- 1 x 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
- 1 x 8 pin female to 2x RA(Right Angle) big 4 pin female power, 47/62CM, 18AWG,RoHS/REACH
- 1 x 8 pin female to 4 pin female power, 37cm, 18AWG,RoHS/REACH
- 1 x MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG
- 1 x MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG
- 1 x MINI SAS(RA-RS EXIT)-4 SATA,INT,55/55/55/55CM,55CM SB,30AWG
- 4 x 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
- 1 x Rear window for SC819U, 119U tool-less chassis (i2XS)
- 1 x Plastic air shroud for SC819U, 119U (X11 24DIMM, left side)
- 1 x Plastic air shroud for SC819U, 119U (X11 24DIMM, right side)
- 1 x 1U LHS WIO Riser card with two PCI-E x16 slots
- 1 x 1U RHS WIO Riser card with one PCI-E x8 slot
- 2 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
- 2 x 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
