About
Specifications
Dual Processor
The industry's broadest portfolio of performance optimized dual processor servers to match your specific workload requirements
About
Dual Processor
The industry's broadest portfolio of performance optimized dual processor servers to match your specific workload requirements
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1029U-TN12RV
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1029U-TN12RV
Product Name

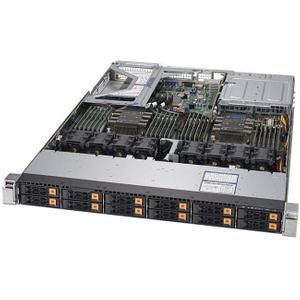

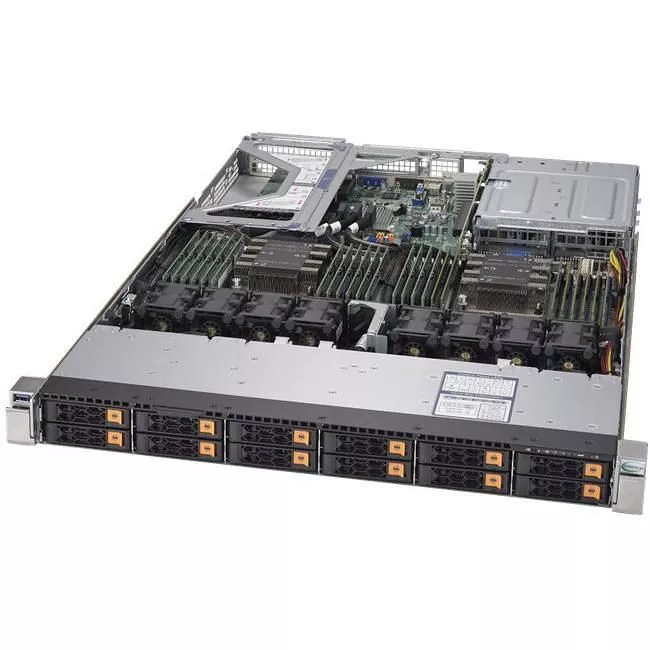

SuperServer 1029U-TN12RV (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
6 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2933/PC4-23466
Number of Total Memory Slots
24
Intel Optane Memory Ready
Yes
Controllers
Controller Type
Serial ATA/600
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
I/O Expansions
Number of Total Expansion Bays
12
Number of Internal 2.5" Bays
12
Total Number of Expansion Slots
3.0
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
12
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1200 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
29.1"
Miscellaneous
Package Contents
- SuperServer 1029U-TN12RV (Black)
- 1 x CSE-119UHTS-R1K22HP-T
- 1 x NVMe AOC by 16,HF,RoHS/REACH
- 1 x 1U Hybrid BPN for 12x2.5"; SAS3/SATA3/NVMe Storage Devices
- 1 x CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,30CM,28AWG
- 1 x PWYCB,2X4F/GPU-White to TWO 2X2F,P4.2, (5,12V),65/65CM,18AWG,RoHS
- 1 x PWEX,2X2F/P4.2 TO 2x4F/P4.2,BLK*2,YEL*1,RED*1,61CM,16AWG
- 1 x MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG
- 1 x MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,39CM,SB,30AWG
- 1 x MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG
- 1 x SLIMLINE SAS x8 (LS) to 2x MINI SAS HD x4,INT, 74CM,32AWG
- 1 x SLIMLINE SAS x8 (LS) to 2x MINI SAS HD x4,INT, 80CM,32AWG
- 1 x SLIMLINE SAS4 x8 RE to SLIMLINE SAS4 x8,FLAT, 53/47CM 32AWG,Bundled
- 12 x 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
- 1 x Plastic air shroud for SC819U, 119U (X11 24DIMM, left side)
- 1 x Plastic air shroud for SC819U, 119U (X11 24DIMM, right side)
- 1 x 1U LHS WIO Riser card with two PCI-E x16 slots
- 1 x 1U RHS WIO Riser card with one PCI-E x8 slot
- 2 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
- 2 x 1U 1200W/800W Titanium Redundant Power Supply CRPS 73.5x203x40mm,RoHS/REACH
- 2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
- 1 x CBL,CNTL PANEL CONVERTER,FOR 809H and CSE119UH,FFC,20PIN,15C
- 1 x USB 3.0(F) Type A, RA to USB3.0 20pin,60CM,26/30AWG,RoHS
- 8 x 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
- 1 x Front control board for 119UHTS 1U Ultra
- 1 x Rear window for SC819U, 119U tool-less chassis (No opening)
- 1 x set Outer rail, quick-release type, 25.6"" to 33.05""
- 1 x set Inner rail, extension, long (quick) for 1U 17.2
- 1 x set Inner rail, front, quick-release type (thumb screw appiled)
- 1 x Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
1 Year
