SMC-SYS-1029GQ-TVRT-00
MPN: SYS-1029GQ-TVRT

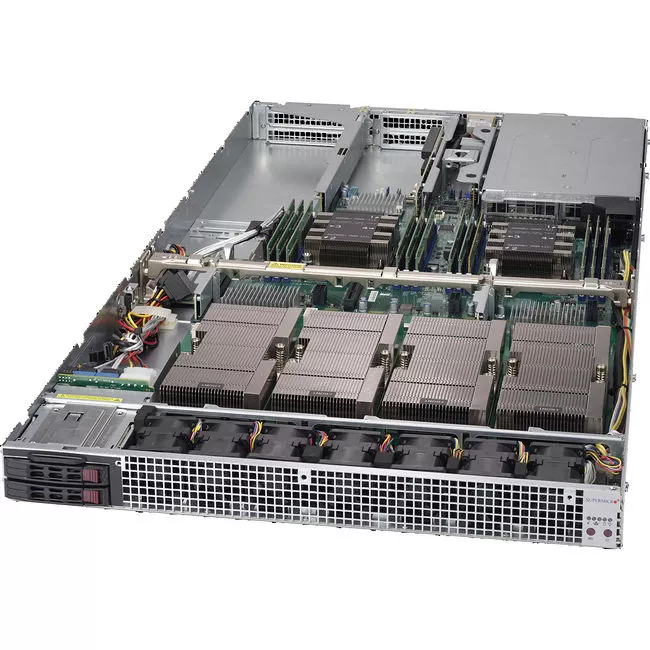

Supermicro SYS-1029GQ-TVRT 1U Rackmount Barebone - Intel C621 - 2X LGA-3647 - Supports 4X GPU

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1029GQ-TVRT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1029GQ-TVRT
Product Name
SuperServer 1029GQ-TVRT (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Silver
  • Xeon Bronze
    • 64-bit Processing
    Yes
    Chipset
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory Supported
    1.50 TB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Number of Total Memory Slots
    12
    Controllers
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Network & Communication
    Ethernet Technology
    10 Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    4
    Number of Internal 2.5" Bays
    4
    Total Number of Expansion Slots
    4.0
    Number of PCI Express x16 Slots
    4
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 3.0 Ports
    2
    Number of SATA Interfaces
    4
    Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    2000 W
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.2"
    Depth
    39.3"
    Weight (Approximate)
    45 lb
    Miscellaneous
    Package Contents
    • SuperServer 1029GQ-TVRT (Black)
    • 1 x Super X11DGQ Motherboard
    • 1 x CSE-118GQPTS-R2K05P2 Chassis
    • 1 x AOM-PIO-I2XT
    • 1 x AOM housing Volta SXM 2.0 modules in conjunction with X11DGQ DP MB,HF,RoHS
    • 1 x 2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
    • 4 x SATA,INT,ROUND,ST-ST,55CM,30AWG
    • 3 x GPU,2x4F/RA/CPU to 2x4F/RA/CPU,P4.2, 6CM,17AWG, 8A/pin, -25~85C, RoHS
    • 1 x GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
    • 4 x Oculink-Oculink 8 lanes Pascal Cable 50cm 34AWG,RoHS
    • 1 x 1U RHS Active Rear Riser card with two PCI-E x16 Slot,HF,RoH
    • 1 x 1U Passive LHS GPU Riser Card with two NVMe ports and two PC
    • 2 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    • 4 x 1U Passive GPU Heat Sink for NVIDIA SXM2 Module in SYS-1028GQ-TXR(T) Series Servers
    • 4 x 1U Passive GPU Heat Sink for NVIDIA SXM2 Module Equipped with Pascal or Volta GPU
    • 2 x 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
    • 7 x 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
    • 1 x SC118GQE Rear Window for 2x PCI-FL or 4th GPU
    • 1 x Rail set, Quick/Quick, Auto Latch, 548mm Short Version, 685mm~812.8mm(27"~32"), 1U 17.2 SC118GQE 1U 4xGPU
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year

    Specifications
