Supermicro's X11 DP SuperServer® supporting latest Intel Xeon Scalable Processors offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's X11 DP SuperServer® supporting latest Intel Xeon Scalable Processors offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1029GQ-TRT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1029GQ-TRT
Product Name

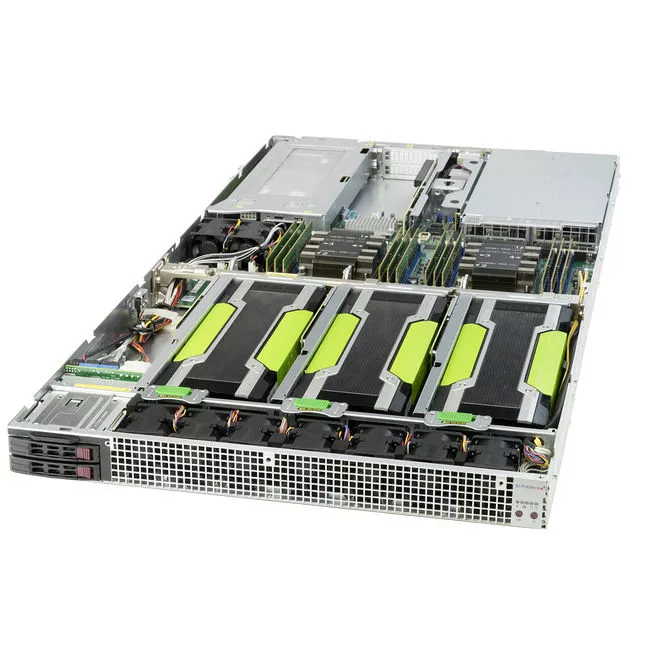

SuperServer 1029GQ-TRT (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
1.50 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
12
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
4
Number of Internal 2.5" Bays
4
Total Number of Expansion Slots
6.0
Number of PCI Express x16 Slots
6
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
4
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
2000 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
39.3"
Weight (Approximate)
45 lb
Miscellaneous
Package Contents
- SuperServer 1029GQ-TRT (Black)
- 1 x Super X11DGQ Motherboard
- 1 x CSE-118GQETS-R2K05P2 Chassis
- 1 x AOM-PIO-I2XT
- 1 x 2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
- 4 x SATA,INT,ROUND,ST-ST,55CM,30AWG
- 3 x GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin, -25~85C, RoHS
- 1 x GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS
- 1 x SYS-1028GQ-TR(T) Quick Reference Guide,HF,RoHS/REACH
- 1 x U RHS Active Rear Riser card with 1 PCI-E x16,HF,RoHS
- 1 x 1U LHS Active GPU Riser card with two PCI-E x16 Slots,HF,RoH
- 3 x 1U LHS GPU riser card with one PCI-E x16 slot,HF,RoHS
- 2 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
- 2 x 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
- 9 x 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
- 1 x SC118GQE Rear Window for 2x PCI-FL or 4th GPU
- 8 x 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan
- 1 x Rail set, Quick/Quick, Auto Latch, 548mm Short Version, 685mm~812.8mm(27"~32"), 1U 17.2 SC118GQE 1U 4xGPU
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Country of Origin
United States
Warranty
Limited Warranty
3 Year
