Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1028U-TR4T+
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1028U-TR4T+
Product Name

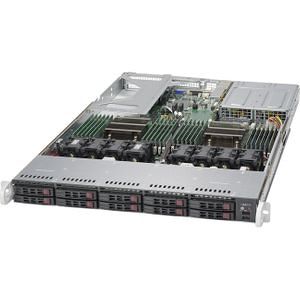

SuperServer 1028U-TR4T+ (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
QuickPath Interconnect Supported
Yes
QuickPath Interconnect
9.60 GT/s
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612 Express
Memory
Maximum Memory Supported
1.50 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
24
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
10
Number of Internal 2.5" Bays
10
Total Number of Expansion Slots
4.0
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 3.0 Ports
5
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
10
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
750 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
30.6"
Miscellaneous
Package Contents
- SuperServer 1028U-TR4T+ (Black)
- 1 x Super X10DRU-i+ Motherboard
- 1 x CSE-116UAC-R750 Chassis
- 1 x Air Shroud for Air X9DRG/X10DRG boards in CSE-118GH-R1K66B
- 1 x 1U SAS3 12Gbps 10x 2.5" HDD backplane for 1U Storage Chassis,RoHS/REACH,PBF
- 2 x 55cm 30AWG SATA S-S cable
- 1 x 8 pin to 8 pin round SGPIO cable, 61.5cm, 28AWG, pinout 1-1,RoHS/REACH
- 1 x 8 pin female to 2x RA(Right Angle) big 4 pin female power, 47/62CM, 18AWG,RoHS/REACH
- 1 x Internal RA side exit (right) miniSAS to miniSAS HD 47cm w/ SB, 30AWG,RoHS/REACH
- 1 x Internal RA side exit (right) miniSAS to miniSAS HD 39cm w/ SB, 30AWG,RoHS/REACH
- 1 x RSC-R1UW-E8R-O-P Riser Card
- 1 x RSC-R1UW-2E16-O-P Riser Card
- 2 x 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
- 2 x 1U 750W CRPS, +12V/+12Vsb output, 80-plus Platinum AC-DC Power Supply Module (185x74x40mm),RoHS/REACH,PBF
- 2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
- 1 x FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF. 28AWG
- 10 x Black gen 3rd hot-swap 2.5inch HDD tray
- 4 x 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
- 1 x AOC for 4x 10GBase-T ports
Certifications & Standards
- ACPI 1.0
- ACPI 2.0
- ACPI 3.0
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
