About
Specifications

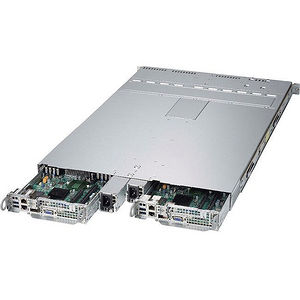

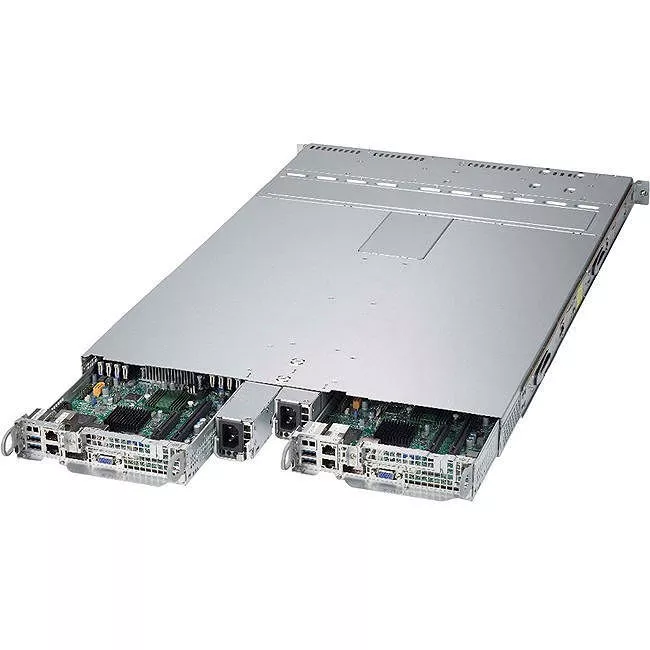

Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1028TP-DTFR
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1028TP-DTFR
Product Name
SuperServer 1028TP-DTFR (Black)
Product Type
Barebone System
Processor
Number of Nodes
2
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
16
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
4
Number of Internal 2.5" Bays
4
Total Number of Expansion Slots
2.0
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
4
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1000 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
19.1"
Depth
29.5"
Weight (Approximate)
33.50 lb
Miscellaneous
Package Contents
- SuperServer 1028TP-DTFR (Black)
- 2 x Super X10DRT-PIBF Motherboards
- 1 x 1U Chassis
- 1 x 1U 8-Port 2-Node 12Gbps Backplane for 4x2.5
- 2 x Backplane adapter card; 6SATA ports,RoHS/REACH,PBF
- 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
- 2 x RoHS/REACH,PBF
- 2 x 1U Passive Front CPU Heat Sink w/ a Middle Air Channel for X9, X10 2U Twin^2+ and Twin Pro^2 Series Servers
- 2 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
- 2 x 1000W Redundant Titanium Level (96%) Power Supplies
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
