Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1028TP-DC1FR
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1028TP-DC1FR
Product Name

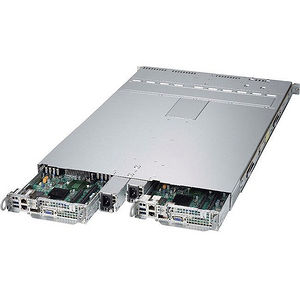

SuperServer 1028TP-DC1FR (Silver)
Product Type
Barebone System
Processor
Number of Nodes
2
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Total Number of Memory Slots
16.0
Controllers
Controller Type
12Gb/s SAS
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
I/O Expansions
Number of Total Expansion Bays
4
Total Number of Expansion Slots
1.0
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SAS Interfaces
4
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1000 W
Physical Characteristics
Color Family
Silver
Product Color
Silver
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
19.1"
Depth
29.5"
Weight (Approximate)
33.50 lb
Miscellaneous
Package Contents
- SuperServer 1028TP-DC1FR (Silver)
- 2 x Super X10DRT-PIBF Motherboards
- 1 x 1U Chassis
- 2 x LSI 3108, SAS 12Gbps (x6 internal)
- 1 x 1U 8-Port 2-Node 12Gbps Backplane for 4x2.5
- 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
- 2 x RoHS/REACH,PBF
- 2 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
- 2 x 1U Passive Front CPU Heat Sink w/ a Middle Air Channel for X9, X10 2U Twin^2+ and Twin Pro^2 Series Servers
- 2 x 1000W Redundant Titanium Level (96%) Power Supplies
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
