E5-2600 v3 + C612 based SuperServer / Socket R3 - LGA 2011 / DP Xeon
1U Xeon® E5-2600 v3 Family
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
1U Xeon® E5-2600 v3 Family
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
See More
SPECIFICATIONS
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1028R-MCT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1028R-MCT
Product Name

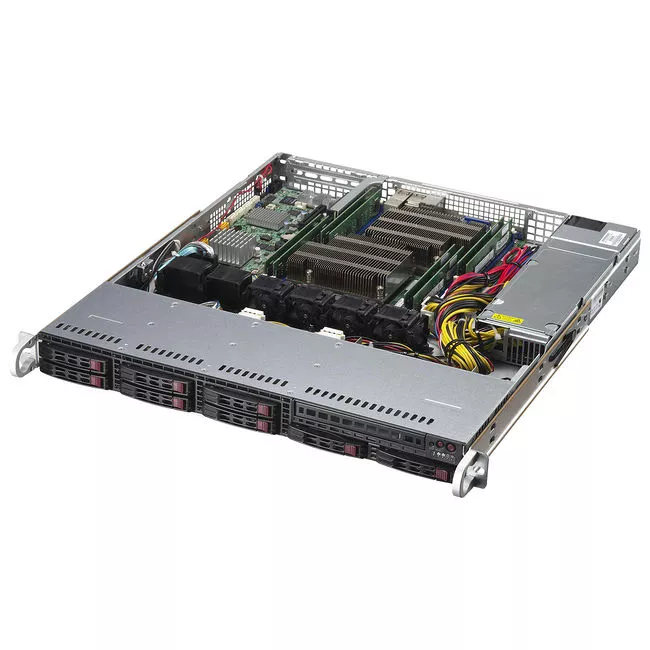

SuperServer 1028R-MCT (Black)
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory
512 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Number of Total Memory Slots
8
Controllers
Controller Type
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
I/O Expansions
Number of Total Expansion Bays
8
Number of Internal 2.5" Bays
8
Number of Total Expansion Slots
1
Number of PCI Express x8 Slots
1
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 3.0 Ports
3
Number of SATA Interfaces
6
Number of SAS Interfaces
8
Power Description
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
600 W
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
20"
Miscellaneous
Package Contents
- SuperServer 1028R-MCT (Black)
- 1 x Super X10DRL-CT Motherboard
- 1 x 1U Chassis
- 1 x 1U SAS3 6x2.5"" SAS3 HDD/SSD and 2x2.5"" NVMe/SATA Storage Devices,
- 1 x Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF
- 1 x Internal Mini-SAS HD to Mini-SAS HD 25cm,30AWG,HF,RoHS/REACH,PBF
- 1 x RSC-RR1U-E8 (Rev 4.00)
- 1 x 1U Passive Custom CPU Heat Sink for X9DRL, X10DRL Related Systems
- 1 x 1U 600W Multi Output Power Supply PMbus
- 4 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
- 1 x Inner rail, front, short, screw type
- 1 x Outer rail, quick-release type, 25.6
- 1 x Inner rail, extension (quick) for 1U 17.2
- 1 x SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12"x10" MB,RoHS/REACH
- 1 x 1U I/O Shield for X9DB3/X9DBi/X9DB3-F/X9DBi-F/X10DRL-CT with EMI Gasket,RoHS/REACH
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
