About
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1028GR-TRT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1028GR-TRT
Product Name

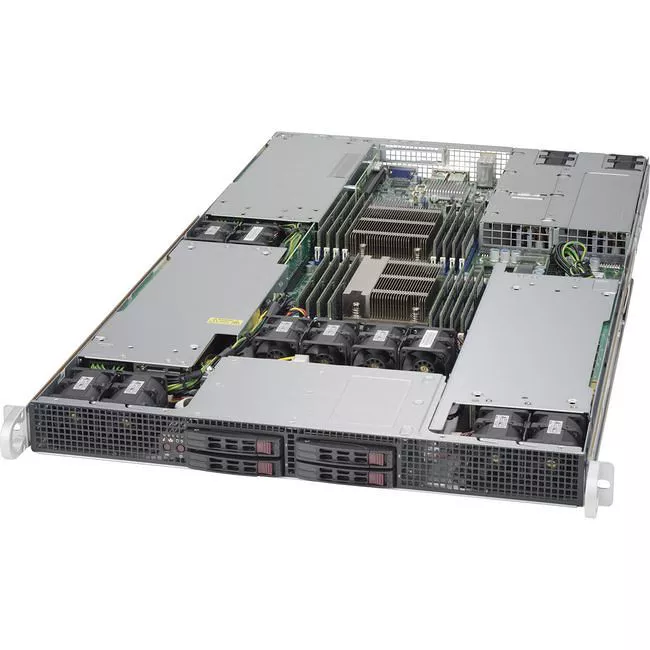

SuperServer 1028GR-TRT (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
QuickPath Interconnect Supported
Yes
QuickPath Interconnect
9.60 GT/s
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612 Express
Memory
Maximum Memory Supported
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Total Number of Memory Slots
16.0
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
4
Total Number of Expansion Slots
5.0
Number of PCI Express x16 Slots
5
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
2
Number of USB 3.0 Ports
4
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
10
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1600 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
30.6"
Miscellaneous
Package Contents
- SuperServer 1028GR-TRT (Black)
- 1 x Super X10DRG-HT Motherboard
- 1 x CSE-118GH-R1K66B Chassis
- 1 x Air Shroud for Air X9DRG/X10DRG boards in CSE-118GH-R1K66B
- 1 x SAS-118G-4; supports 4X2.5" SATA HDD,
- 1 x 8 pin to 8 pin ribbon SGPIO cable with tube, 27cm, PBF
- 1 x 8 Pin to Two 4 Pin Backplane Power Ext. 28/22cm. 18AWG
- 3 x 8 pin to two 6+2 pin 12V GPU power cable, 30 cm 16/20 AWG,HF,RoHS/REACH,PBF
- 4 x 55cm 30AWG SATA S-S cable
- 5 x 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
- 1 x (Riser Card) R1UG-E16R+II
- 1 x (Riser Card) RSC-R1UG-A2E16-X9
- 1 x (Riser Card) R1UG-E16AR+II
- 1 x (Riser Card) RSC-R1UG-E16-X9
- 1 x 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
- 1 x 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB
- 2 x 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF
- 2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
- 10 x 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
- 4 x Black gen 3rd hot-swap 2.5inch HDD tray
- 1 set Rail set, quick/quick, optional for 1U 17.2
Certifications & Standards
- ACPI 1.0
- ACPI 2.0
- ACPI 3.0
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
