Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1028GQ-TXRT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1028GQ-TXRT
Product Name

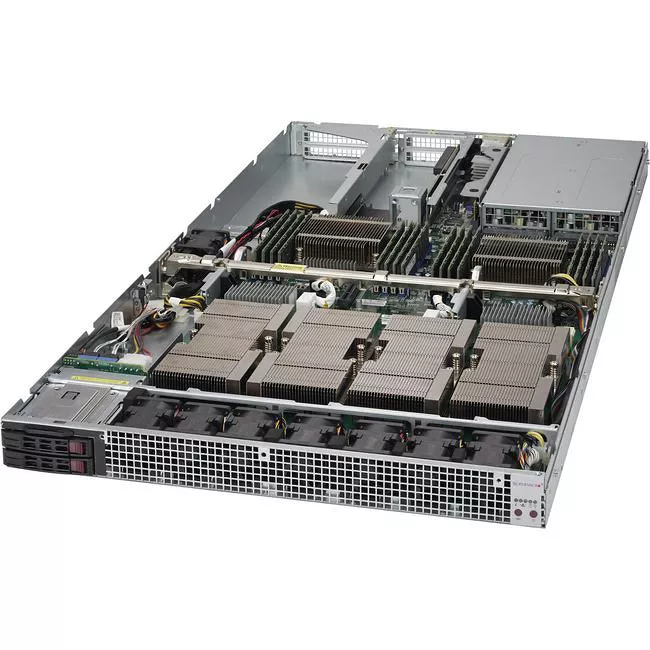

SuperServer 1028GQ-TXRT (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket R3 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
16
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
4
Number of Internal 2.5" Bays
4
Total Number of Expansion Slots
4.0
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
3
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
6
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
2000 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
35.2"
Weight (Approximate)
45 lb
Miscellaneous
Package Contents
- SuperServer 1028GQ-TXRT (Black)
- 1 x Super X10DGQ Motherboard
- 1 x CSE-118GQP-R2K05B Chassis
- 1 x AOM-PIO-I2XT
- 1 x 2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
- 1 x PCIe 8 pin female(black) to CPU 8 pin female(white), K80/M60/M40 GPU power cable, 30cm, 18AWG,RoHS/REACH
- 1 x GPU,2x4F/RA/PCIe to 2x4F/CPU, P4.2, 42CM,17AWG
- 2 x GPU,2x4F/RA/PCIe to 2x4F/RA/CPU, P4.2, 5.5CM,17AWG
- 4 x 55cm 30AWG SATA S-S cable
- 4 x Oculink-Oculink 8 lanes Pascal Cable 50cm 34AWG
- 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
- 1 x SYS-1028GQ-TR(T) Quick Reference Guide,HF,RoHS/REACH
- 1 x [NR]RSC-G-68
- 1 x [NR]RSC-G-66
- 4 x 1U Passive GPU Heat Sink for NVIDIA SXM2 Module in SYS-1028GQ-TXR(T) Series Servers
- 2 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Square ILM MB
- 2 x 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
- 7 x 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
