SMC-SYS-1028GQ-TVRT-00
MPN: SYS-1028GQ-TVRT

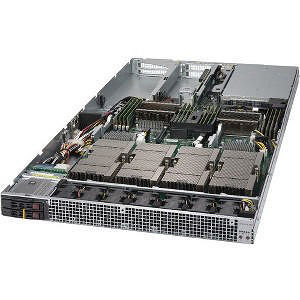

Supermicro SYS-1028GQ-TVRT 1U Rack Barebone - Intel C612 - 2X Socket R3 LGA-2011 4X V100 SXM2 GPU

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1028GQ-TVRT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1028GQ-TVRT
Product Name
SuperServer 1028GQ-TVRT (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket R3 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
16
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
4
Number of Internal 2.5" Bays
4
Total Number of Expansion Slots
4.0
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
3
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
6
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    2000 W
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.2"
    Depth
    39.3"
    Weight (Approximate)
    45 lb
    Miscellaneous
    Package Contents
    • SuperServer 1028GQ-TVRT (Black)
    • 1 x Super X10DGQ Motherboard
    • 1 x CSE-118GQP-R2K05B Chassis
    • 1 x AOM-PIO-I2XT
    • 1 x AOM housing Volta SXM 2.0 modules in conjunction with X11DGQ DP MB,HF,RoHS
    • 1 x 2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
    • 4 x SATA,INT,ROUND,ST-ST,55CM,30AWG
    • 1 x PCIe 8 pin female(black) to CPU 8 pin female(white), M60/M40 GPU power cable, 30cm, 18AWG, 10A/pin, 0~80C, RoHS/REACH
    • 1 x GPU,2x4F/RA/PCIe to 2x4F/CPU, P4.2, 42CM,17AWG, 8A/pin, -25~85C, RoHS/REACH
    • 4 x Oculink-Oculink 8 lanes Pascal Cable 50cm 34AWG,RoHS
    • 2 x GPU,2x4F/RA/PCIe to 2x4F/RA/CPU, P4.2, 5.5CM,17AWG, 8A/pin, -25~85C, RoHS/REACH
    • 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
    • 1 x SYS-1028GQ-TR(T) Quick Reference Guide,HF,RoHS/REACH
    • 1 x RSC-G-68
    • 1 x 1U GPU Riser Card with 2 PCI-E x16 slot
    • 2 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Square ILM MB
    • 4 x 1U Passive GPU Heat Sink for NVIDIA SXM2 Module in SYS-1028GQ-TXR(T) Series Servers
    • 4 x 1U Passive GPU Heat Sink for NVIDIA SXM2 Module Equipped with Pascal or Volta GPU
    • 2 x 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
    • 7 x 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan
    • 1 x Rail set, Quick/Quick, Auto Latch, 548mm Short Version, 685mm~812.8mm(27"~32"), 1U 17.2 SC118GQE 1U 4xGPU
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year
