Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1019P-FHN2T
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1019P-FHN2T
Product Name

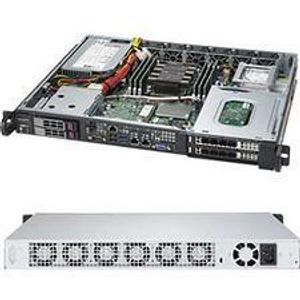

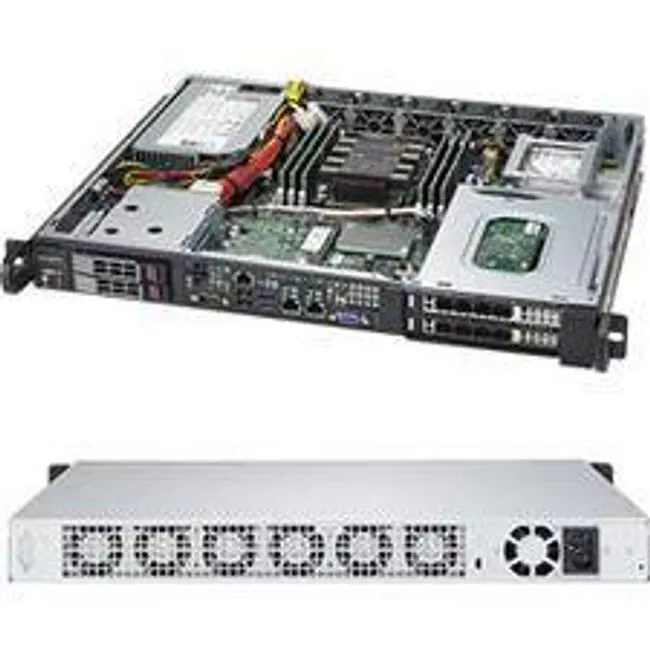

SuperServer 1019P-FHN2T (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket P LGA-3647
Processor Supported
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C622
Memory
Maximum Memory Supported
1.50 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2933/PC4-23466
Number of Total Memory Slots
6
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
4
Number of Internal 2.5" Bays
4
Total Number of Expansion Slots
2.0
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
2
Number of SATA Interfaces
4
Power Description
Input Voltage
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
500 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
15"
Weight (Approximate)
15 lb
Miscellaneous
Package Contents
- SuperServer 1019P-FHN2T (Black)
- 1 x Super MBD-X11SPW-TF Motherboard
- 1 x 1U Chassis
- 1 x 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
- 2 x SATA,INT,ROUND,ST-ST,29CM,30AWG
- 1 x CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
- 2 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
- 1 x Mylar Air Shroud for SC513B + X11SPW
- 1 x 1U LHS WIO Riser card with two PCI-E x16 slots
- 1 x 1U Proprietary Passive CPU Heat Sink (124 mm Long) for SYS-2029BZ-HNR Series Servers (X11 2U4N 3UPI Big Twin)
- 1 x 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH
- 1 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
- 1 x CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG
- 4 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
- 2 x 2.5" New ID gen 3 hot-swap HDD tray with lock feature (with plastic bracket)
- 1 x 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
- 1 x SC809 FRONT CONTROL PANEL ASSY
- 1 x set Outer rail, quick-release type, 25.6" to 33.05"
- 1 x set Inner rail, front, short (quick) for 1U 17.2
- 1 x Fan tray for six 40x28 fans
- 1 x Riser Card Bracket for WIO MB in SC513B
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
