Supermicro's systems based on the Intel® Atom™ processor C2000 series System-on-Chip are well-suited for entry-level server platforms and embedded IPC market applications.
About
Supermicro's systems based on the Intel® Atom™ processor C2000 series System-on-Chip are well-suited for entry-level server platforms and embedded IPC market applications.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SSG-5018A-AR12L
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
5018A-AR12L
Product Name

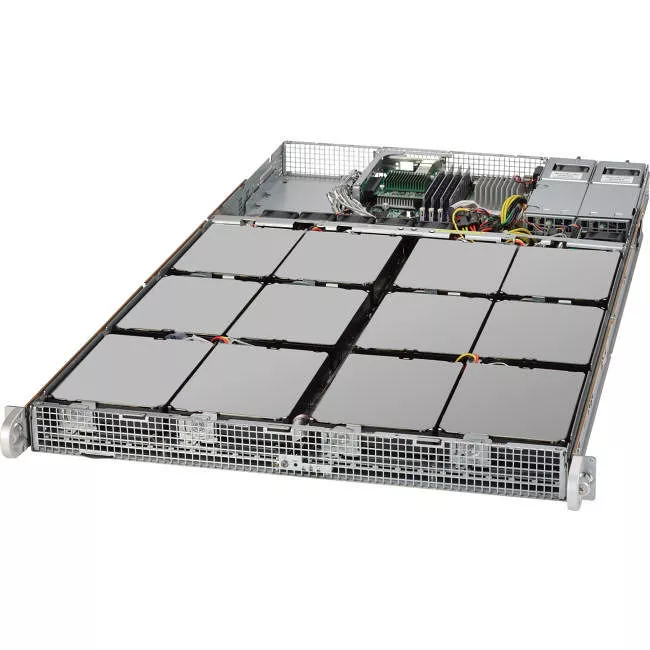

SuperServer 5018A-AR12L
Product Type
Server
Processor
Number of Processors Supported
1
Number of Processors Installed
1
Processor Manufacturer
Intel
Processor Type
Atom
Processor Model
C2750
Processor Core
Octa-core (8 Core)
Processor Speed
2.40 GHz
Maximum Turbo Speed
2.60 GHz
Cache
4 MB
64-bit Processing
Yes
Hyper-Threading
No
Chipset
Chipset Manufacturer
Intel
Memory
Maximum Memory Supported
64 GB
Memory Technology
DDR3 SDRAM
Number of Total Memory Slots
4
Controllers
Controller Type
Serial ATA/600
I/O Expansions
Number of 3.5" Bays
12
Total Number of Expansion Slots
1.0
Number of PCI Express x8 Slots
1
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
Interfaces/Ports
Total Number of USB Ports
3
Number of USB 2.0 Ports
3
Network (RJ-45)
Yes
VGA
Yes
Remote Management
Yes
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
400 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
32"
Miscellaneous
Package Contents
- SuperServer 5018A-AR12L
- 1 x Super A1SA7-2750F Motherboard
- 1 x 1U Chassis
- 2 x 2x 3.5" hard drive backplane support for SC801S chassis, with indiviual drive power cycle control, fuse protection, drive identify, pre-charge resistor;,RoHS/REACH,PBF
- 2 x 4x 3.5" hard drive backplane for Cold Storage Product & SC801S,RoHS/REACH,PBF
- 4 x 70cm SATA cable S-S 30AWG,RoHS/REACH,PBF
- 1 x 16 pin to 2x2(85cm), 2x2(65cm), 1x2(50cm), 1x2(30cm) power cycling cable for SC801S/SC801L,RoHS/REACH
- 4 x 81CM 30AWG SATA S-S cable
- 4 x 55cm 30AWG SATA S-S cable
- 2 x 65cm 2 pin female to 2 pin female for Chassis Intrusion switch, 26AWG,RoHS/REACH
- 1 x RSC-R1UFF-E8R
- 2 x 1U 400W Redundant Short Depth Power Supply
Certifications & Standards
- ACPI 1.0
- ACPI 2.0
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
