MPN: SSG-2028R-ACR24H

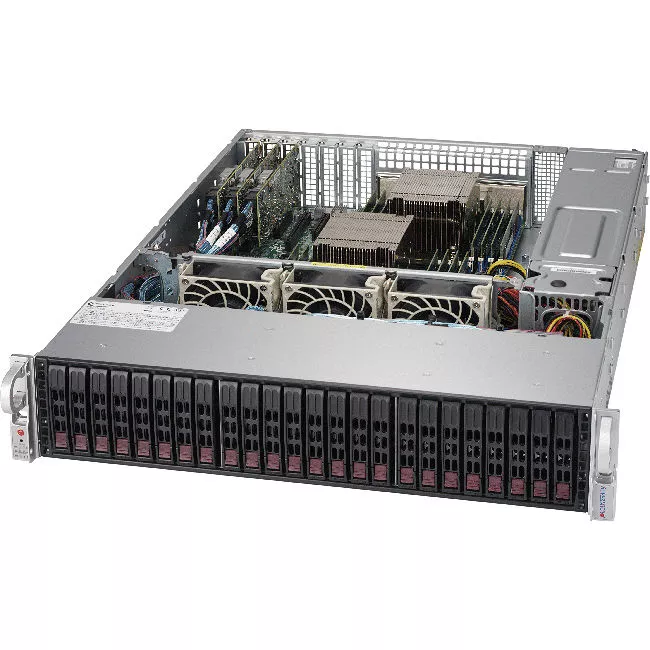

Supermicro SSG-2028R-ACR24H 2U RM Barebone - Intel C612 Chipset - 2X Socket LGA 2011-v3 - 2x CPU
Highlights
About
Specifications
Supermicro's X10 Broadwell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's X10 Broadwell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SSG-2028R-ACR24H
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
2028R-ACR24H
Product Name
SuperServer 2028R-ACR24H (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
16
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
I/O Expansions
Number of Total Expansion Bays
24
Number of Internal 2.5" Bays
24
Number of Total Expansion Slots
7
Number of PCI Express x8 Slots
6
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 3.0 Ports
2
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
920 W
Physical Characteristics
Product Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.2"
Depth
24.8"
Miscellaneous
Package Contents
- SuperServer 2028R-ACR24H (Black)
- 1 x Super X10DRH-iT Motherboard
- 1 x 2U Chassis
- 3 x LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 16 drives with expander - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile
- 1 x 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
- 2 x Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF
- 4 x Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s, HF,RoHS/REACH,PBF
- 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
- 1 x STD I/O shield for X9 socket R server MB with Gasket.
- 1 x 2U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32
- 1 x 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
- 2 x 920W 1U Redundant PWS W/ Quiet Mode
- 24 x Black 3rd Gen hot-swap 2.5" HDD tray
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
