ABOUT
The innovative SuperBlade® offers enhanced system computing density leveraged from years of rackmount server design experience. Applying Supermicro's application-optimized engineering philosophy, each SuperBlade® module delivers true server functionality including up to four processors (in select models), optional InfiniBand mezzanine HCA, and supports either SATA or SAS hard drives.
See More
SPECIFICATIONS
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SBI-7128R-C6N
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperBlade
Product Model
SBI-7128R-C6N
Product Name

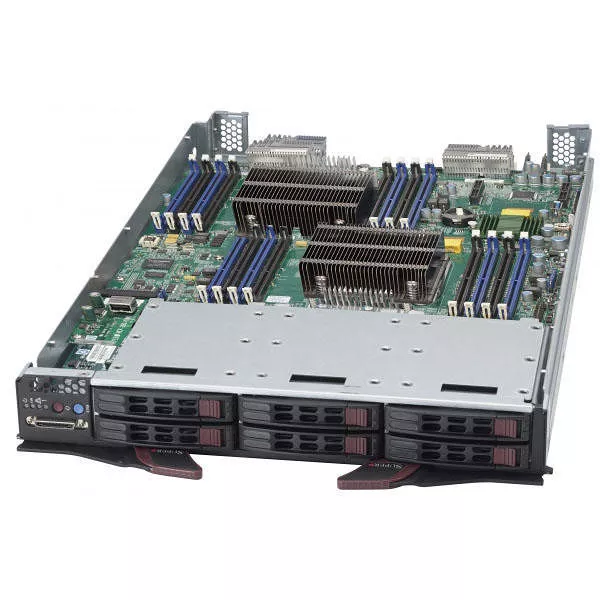

Processor Blade SBI-7128R-C6N (Black)
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket R3 LGA-2011-3
Processor Supported
Xeon
QuickPath Interconnect Supported
Yes
QuickPath Interconnect
9.6 GT/s
64-bit Processing
Yes
Chipset Manufacturer
Intel
Chipset Model
C612 Express
Memory
Maximum Memory
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
16
Controllers
Controller Type
6Gb/s SAS
RAID Supported
Yes
RAID Levels
0, 1, 5, 6, 50
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2600
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
6
Number of Internal 2.5" Bays
6
Interfaces/Ports
Network (RJ-45)
Yes
Infiniband
Yes
Physical Characteristics
Color
Black
Form Factor
Blade
Height
11.32"
Width
1.67"
Depth
20.5"
Weight (Approximate)
8.60 lb
Miscellaneous
Certifications & Standards
- ACPI up to 3.0
Electromagnetic Compatibility (EMC):
-- United States / Canada:
- FCC- Emissions (US) Verification
-- Europe:
- EN55022 - Emissions
- EN55024 - Immunity
- EN61000-3-2 - Harmonics
- EN61000-3-3 - Voltage Flicker
- CE - EMC Directive 89/336/EEC
Safety Compliance:
-- United States / Canada:
- UL60950-1 - CSA/CUL 60950-1
-- Europe:
- EN60950-1, CE - Low Voltage Directive 73/23/EEE
-- Germany:
- TUV
Warranty
Limited Warranty
3 Year
