SMC-PWS-563-1H20-00
MPN: PWS-563-1H20

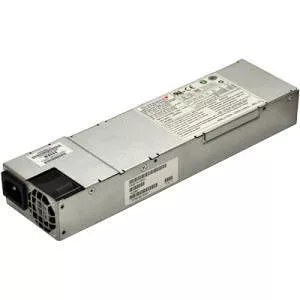

Supermicro PWS-563-1H20 ATX12V & EPS12V 560W Power Supply


Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
PWS5631H20
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
PWS-563-1H20
Product Name
ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Power Factor Correction (PFC)
Active
Power Description
Number of +12V Rails
1
Input Voltage Type
AC
Input Voltage
  • 110 V AC
  • 220 V AC
  • Input Voltage Range
    100 V AC - 240 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
  • Input Current
    7.5 A @ 220V
    Output Current
  • 15 A
  • 18 A
  • 49 A
  • 500 mA
  • 3 A
  • Output Power
    560 W
    Interfaces/Ports
    Receptacles
  • 20-pin ATX Motherboard
  • 4-pin ATX12V Motherboard
  • 8-pin EPS12V Motherboard
  • Physical Characteristics
    Form Factor
    Rack-mountable
    Miscellaneous
    Compatibility
    Supermicro SuperChassis 815T-563UB
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    3 Year
