SMC-PWS-561-1H-00
MPN: PWS-561-1H

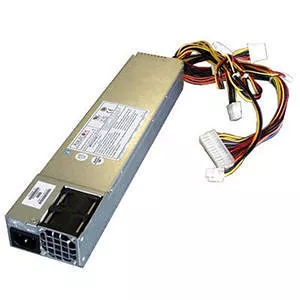

Supermicro PWS-561-1H ATX12V & EPS12V 560W Power Supply

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
PWS5611H
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
PWS-561-1H
Product Name
PWS-561-1H ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
    100 V AC - 240 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Output Voltage Detail
  • 3.3 V DC @ 21 A
  • 5 V DC @ 25 A
  • 12 V DC @ 43.6 A
  • -12 V DC @ 600 mA
  • 5 V DC @ 3 A
    • Input Current
  • 8.5 A @ 110V
  • 4 A @ 220V
    • Output Current
  • 21 A
  • 25 A
  • 43.60 A
  • 600 mA
  • 3 A
    • Output Power
    560 W
    Interfaces/Ports
    Receptacles
  • 1 x 24-pin ATX Motherboard
  • 1 x 4-pin ATX12V Motherboard
  • 1 x 8-pin EPS12V Motherboard
    • Physical Characteristics
    Weight (Approximate)
    5.40 lb
    Miscellaneous
    Compatibility

    Supermicro 6025B-3 Xeon 5000/5100 Series 1U Rackmount Server

    Certifications & Standards

    RoHS 5/6

    Environmentally Friendly
    Yes
