SMC-MBD-X12SCA-F-O-00
MPN: MBD-X12SCA-F-O

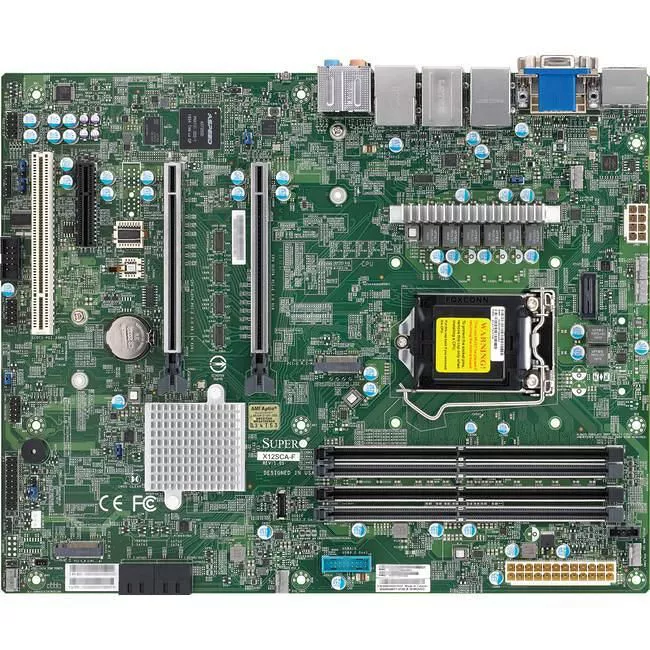

Supermicro MBD-X12SCA-F-O Workstation Motherboard - 1x LGA-1200 - Intel W480 Chipset - ATX

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-X12SCA-F-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
X12SCA-F
Product Name
X12SCA-F Workstation Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Workstation Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
W480
Total Processor Supported
1
Processor Socket
Socket LGA-1200
Processor Supported
  • Xeon
  • Core i3
  • Core i5
  • Core i7
  • Core i9
  • Celeron
  • Pentium
    • Memory
    Number of Memory Slots
    4
    Memory Form Factor
  • DIMM
  • UDIMM
    • Maximum Memory Supported
    128 GB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
    2933 MHz
    I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 10
    • Video
    Onboard Video
    CPU Dependent Video
    Audio
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    2.5Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    4
    Total Number of PCI Express Slots
    3
    Number of PCI Express x4 Slots
    1
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.2 Ports
    4
    VGA
    Yes
    HDMI
    Yes
    DisplayPort
    Yes
    DVI
    Yes
    Number of Network (RJ-45) Ports
    3
    Onboard Interfaces
    Number of SATA Interfaces
    4
    Number of M.2 Interfaces
    2
    Total Number of Onboard USB Ports
    6
    Number of Onboard USB 2.0 Ports
    2
    Number of Onboard USB 3.2 Ports
    4
    Physical Characteristics
    Form Factor
    ATX
    Width
    12"
    Depth
    9.6"
    Miscellaneous
    Package Contents
    • X12SCA-F Workstation Motherboard
    • 4 x SATA Cables
    • 1 x I/O Shield
    • 1 x Quick Reference Guide
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
